Custom Bolt Check

8 Dec 2016 v4.0
  • Femap

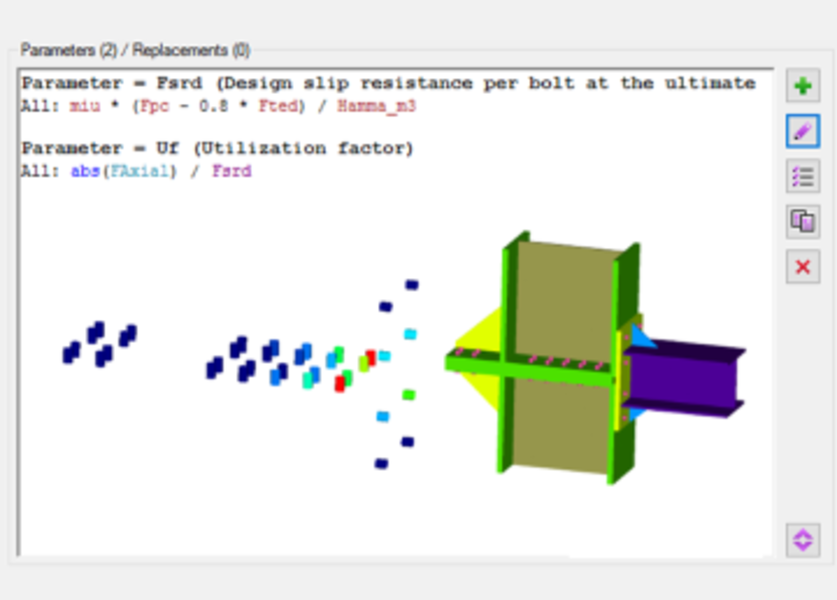

A part of the gantry crane structure with bolted connection detail has been verified with Axial and Shear Bolt checks implemented as custom checks.Custom Bolt Check Tutorial

In this tutorial the procedure of creation custom check using SDC Verifier is reviewed in details.

  • Part of the gantry crane structure with bolted connection detail has been used as a start FEM model.
  • Axial and Shear Bolt check were performed.
  • Plots and tables are created to present the results.

Download Custom Bolt Check Tutorial
