Beam Section Optimization in FEA: Reducing Weight Without Failing Code Checks

  SDC Verifier

In structural and mechanical engineering, beam design is a constant balance between safety, efficiency, and cost. Beams often account for much of a structure’s weight—whether in cranes, bridges,  primarily buildings, offshore modules, or towers—so every kilogram saved reduces fabrication, transport, and installation costs.

Overdesign leads to wasted material and excess dead weight, while underdesign risks buckling, instability, or yield failures that compromise safety and fail code checks. Beam section optimization closes this gap, enabling engineers to reduce weight while maintaining compliance with design standards such as Eurocode 3, AISC, ISO, and NORSOK.

Why Beam Section Optimization Matters?

In structural systems, beam sections heavily influence both weight and performance. Heavier sections increase fabrication, welding, and erection costs, and require stronger supports . Optimized sections, in contrast, minimize material use while safely carrying design loads.

Mis-sizing poses two main risks. Overdesign wastes material, increases connection stresses, and raises fatigue risk without improving safety. Underdesign can trigger local or lateral-torsional buckling, excessive deflection, or yielding—issues that may not appear in simple FEA checks. Common issues include:

  • Local buckling in slender webs or flanges,
  • Lateral-torsional buckling in open sections under bending,
  • Excessive deflection leading to serviceability violations,
  • Yielding in cross-sections when load redistribution is limited.

Transmission tower lattice members illustrate this well. Standardized angles or tubulars are easy to fabricate but often underutilized at 40–60%, adding unnecessary steel across many members. Downsizing without code-based verification risks non-compliance with Eurocode 3 limits.

Beam section optimization aligns member size with allowable utilization, reducing weight and cost while maintaining compliance with Eurocode 3, AISC, or ISO resulting in lighter, safer, and more efficient structures.

Common Challenges in Lightweight Beam Design

Designing lightweight yet code-compliant beams is not simply a matter of reducing cross-sectional dimensions. Engineers must contend with a range of technical challenges that affect both structural performance and regulatory acceptance.

Balancing Strength and Stiffness

A section may have sufficient capacity to resist applied forces (axial, bending, shear, torsion) but still fail serviceability requirements due to excessive deflection or vibration. For example, an I-beam optimized for bending resistance can meet utilization checks under Eurocode 3 but produce deflections beyond serviceability limits in long-span roof girders.

Avoiding Code Violations

Lightweight sections are particularly sensitive to stability phenomena that are not always obvious in basic stress analysis. Typical risks include:

  • Local buckling of slender plates in webs and flanges.
  • Lateral-torsional buckling (LTB) in open sections under major-axis bending.
  • Column buckling in compression members, where slenderness ratios exceed code limits.
  • Fatigue performance, especially in welded connections subject to fluctuating stresses.
  • Yielding in cross-sections with limited reserve capacity, leaving no margin for second-order effects or accidental overloads.

FEA models may indicate stresses below the material yield, but without explicit checks against the relevant code clauses (e.g., Eurocode 3 Part 1-1 §6.3.1 for column buckling or AISC Chapter F for flexural members), the design cannot be considered compliant.

The Audit Problem

Engineers may present a model showing utilization below 100% based on simple stress ratios, only to have the design rejected during audit because it does not pass detailed verification checks. Classification societies, certification bodies, and internal QA teams require transparent documentation of how each member meets the applicable code provisions.

This mismatch—where designs “look fine” in FEA but fail in reports—often results in costly redesigns, lost time, and reputational risk.

How the Beam Rule in SDC Verifier Works?

The Beam Rule Optimization Tool in SDC Verifier, structural analysis software, is specifically designed to reduce beam weight while ensuring full compliance with recognized design standards. Instead of trial-and-error resizing, it systematically evaluates candidate beam sections, materials, and stiffness properties to determine the lightest possible configuration that still passes all code checks.

Overview of the Optimization Process

At each iteration, SDC Verifier recalculates the code checks—such as capacity, buckling, and serviceability—using the updated section and material properties together with FEA results for the selected load sets. This ensures that every design iteration remains fully compliant with standards like Eurocode 3, AISC, or DNV, delivering an optimized, auditable, and code-verified result.

Input Parameters

Engineers define which parameters are subject to beam section optimization FEA model:

  • Shape cross-section area – directly tied to structural weight. Minimizing area leads to a lighter beam while still respecting code utilization limits.
  • Yield stress (fy) – higher grades of steel can reduce required section sizes but may affect cost and weldability.

During analysis, these values replace the corresponding variables in the design formulas (e.g., section modulus W, second moment of area Iy, slenderness λ, etc.).

Shape Library Integration

The tool is linked to SDC Verifier’s section library, which includes a wide range of standardized profiles:

  • H- and I-sections (rolled or welded)
  • Rectangular and square hollow sections (RHS/SHS)
  • Circular tubulars (CHS)
  • L-angles and T-sections
  • Custom sections defined by the engineer

Compliance Limit Parameters

For each optimization run, the engineer sets code-based limits. These typically include:

  • Maximum utilization factor (e.g., 1.0 under Eurocode or AISC unity check criteria)
  • Deflection limits for serviceability (L/250, L/500, or project-specific)
  • Buckling and stability checks (axial compression, lateral-torsional buckling, local slenderness)

Optimization Criteria

The most common objective is to minimize cross-sectional area, which directly correlates to structural weight and material cost. However, optimization can also be set to maximize or minimize other parameters, depending on project goals. For example:

  • Minimize area → weight reduction for cost savings.
  • Minimize deflections → ensure serviceability for long-span beams while optimizing cross-section size or meeting target utilization factors within code constraints (deflection, buckling, and combined checks).
  • Balance yield stress vs. section size → reduce steel tonnage without excessive reliance on high-grade materials.

In a typical application, the engineer selects minimize area as the governing objective, with all verification checks acting as constraints. The result is the lightest feasible beam that still meets every code requirement.

Step-by-Step Beam Optimization Workflow

Optimizing a beam section in SDC Verifier follows a clear, structured workflow that ensures efficiency, compliance, and traceability.

Before running an optimization select load cases and applicable standard. Start by defining the relevant load cases for the structure—dead load, live load, wind, or crane loads.

  1. Select Optimization of the Beam

Start by defining the optimization for the beam rule.

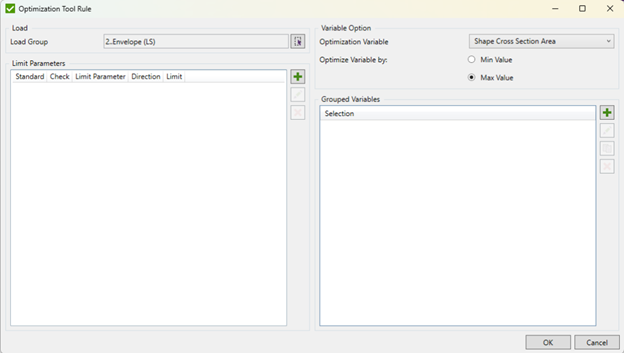

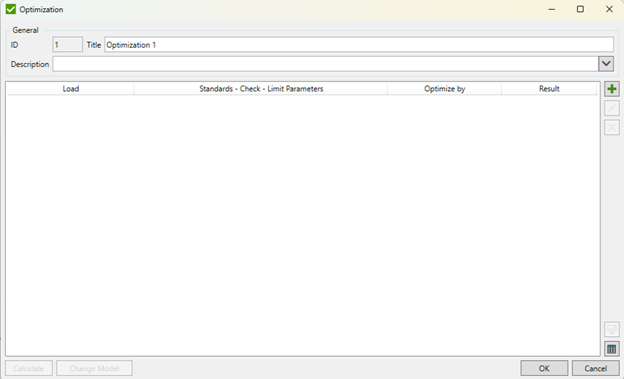

Image: Optimization Tool window in SDC Verifier

Image: Optimization Tool window in SDC Verifier

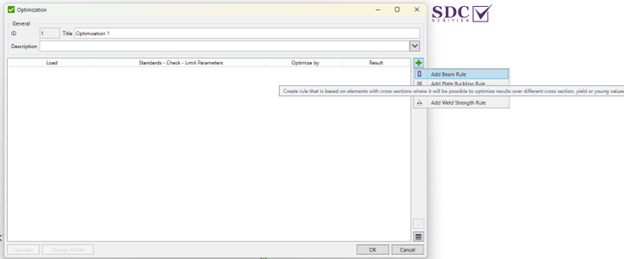

Image: Choosing Beam Rule in SDC Verifier

Image: Choosing Beam Rule in SDC Verifier

  1. Define Parameters
    Specify which parameters the tool should optimize:
  • Choose limit parameters.
  • Then choose Envelope Group (LS).

Image: Optimization window in SDC Verifier

Image: Optimization window in SDC Verifier

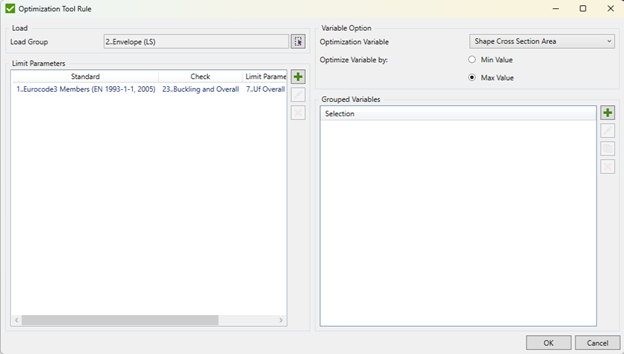

  1. Apply Standard
  • Choose the applicable design standard, such as Eurocode 3, which sets the framework for all verification checks.
  • Define check type (in example, Buckling).
  • Select UF Overall parameter.

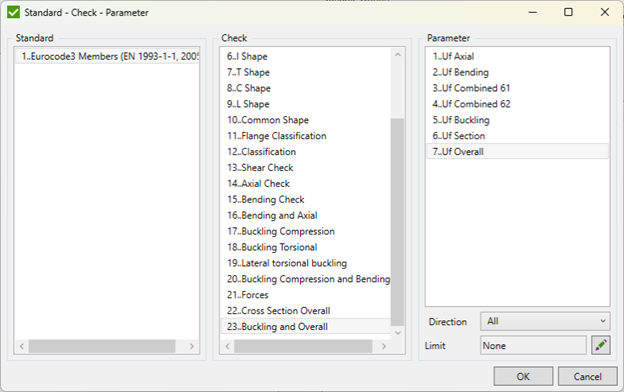

Image: Choosing standard, check and parameter in Optimization Tool in SDC Verifier

Image: Choosing standard, check and parameter in Optimization Tool in SDC Verifier

  1. Set Limit Parameters
    Input the compliance limits to ensure code adherence:

    • Maximum utilization factor (e.g., ≤ 1.0 for Eurocode checks)

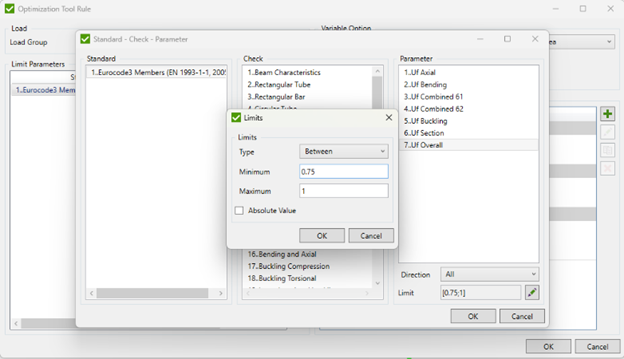

Image: Setting limits in Optimization Tool in SDC Verifier

Image: Setting limits in Optimization Tool in SDC Verifier

  • Define optimization based on minimum or maximum values.



Image: Optimization Tool window in SDC Verifier

Image: Optimization Tool window in SDC Verifier

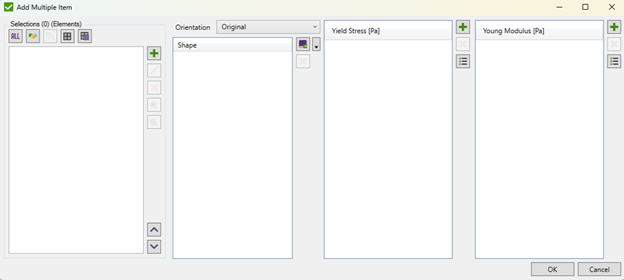

  1. Define Optimization Variables
    Specify which parameters the tool should optimize:

    • Choose grouped variables.

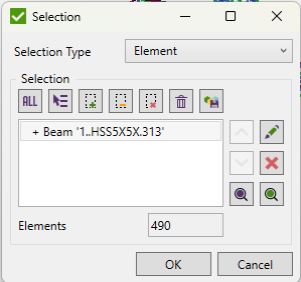

Image: Selecting elements in Optimization Tool window in SDC Verifier

Image: Selecting elements in Optimization Tool window in SDC Verifier

6. Choose shape cross-section (H, I, box, tubular, etc.)

Choose the first property of the model:

Image: First beam chosen for Optimization in SDC Verifier

Image: First beam chosen for Optimization in SDC Verifier

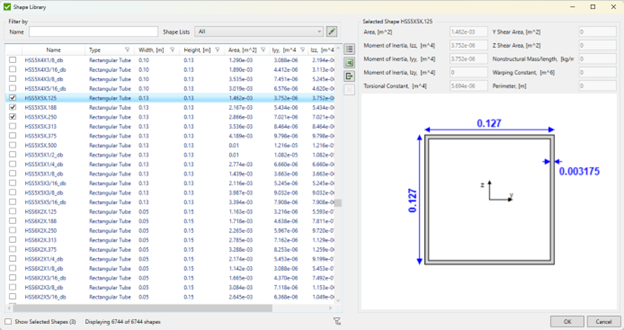

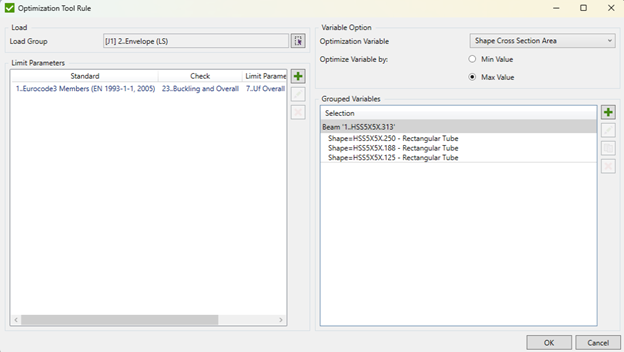

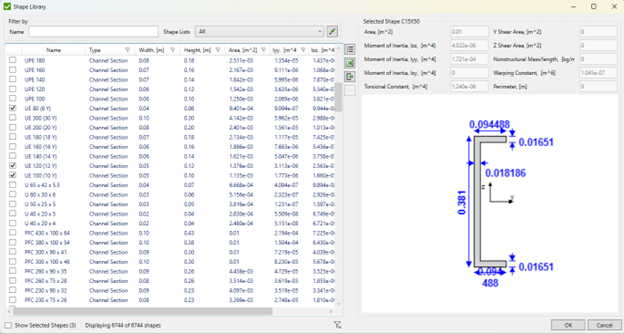

Select rectangular tube for example from the shape library:

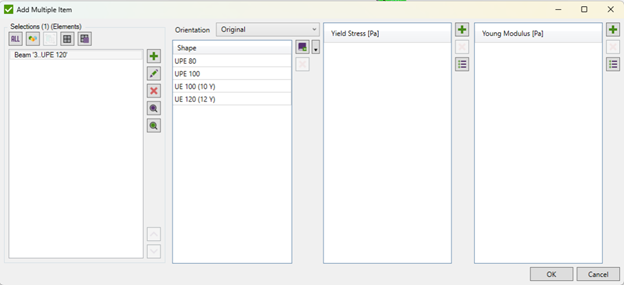

Image: First beam parameters for Optimization in SDC Verifier

Image: First beam parameters for Optimization in SDC Verifier

Image: First beam detailed parameters for Optimization in SDC Verifier

Image: First beam detailed parameters for Optimization in SDC Verifier

Image: First beam more detailed parameters for Optimization in SDC Verifier

Image: First beam more detailed parameters for Optimization in SDC Verifier

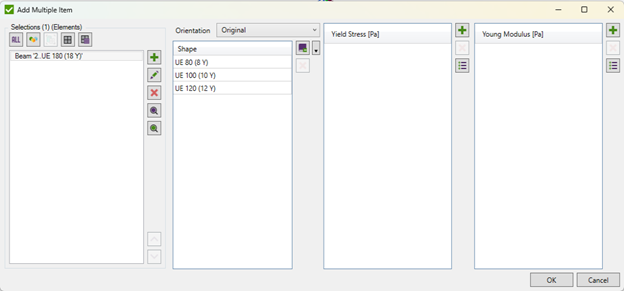

7. Choose the second property of the model:

Image: Second beam chosen for Optimization in SDC Verifier

Image: Second beam chosen for Optimization in SDC Verifier

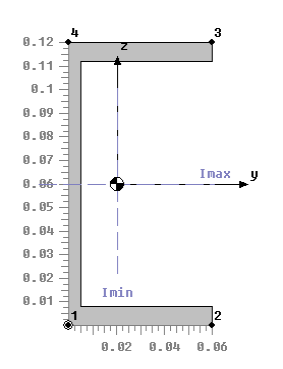

Select channel section for example:

Image: Second beam parameters for Optimization in SDC Verifier

Image: Second beam parameters for Optimization in SDC Verifier

Image: Second beam detailed parameters for Optimization in SDC Verifier

Image: Second beam detailed parameters for Optimization in SDC Verifier

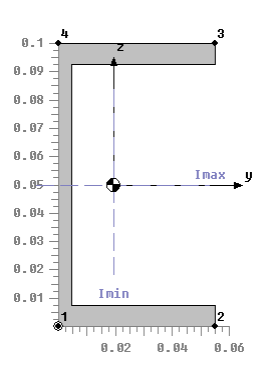

8. Choose the third property of the model:

Select another channel section for example:

Image: Third beam parameters for Optimization in SDC Verifier

Image: Third beam parameters for Optimization in SDC Verifier

Image: Third beam detailed parameters for Optimization in SDC Verifier

Image: Third beam detailed parameters for Optimization in SDC Verifier

  • Apply Yield stress (fy) if multiple material grades are considered
  • Apply Young’s modulus (E) for stiffness adjustments in special materials

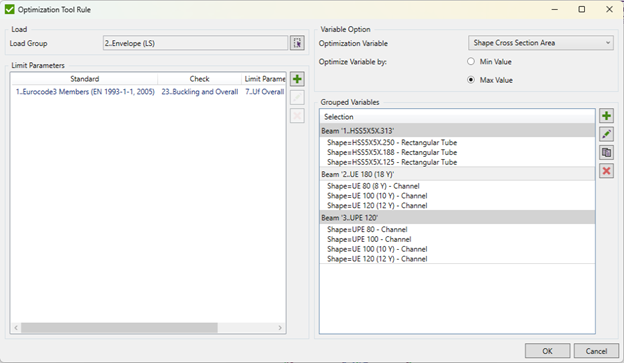

9. See the Calculations for Each Property

Image: Parameters of all chosen beam for optimization

Image: Parameters of all chosen beams for optimization

10. Run Optimization and Review Results
Execute the Beam Rule optimization. The tool iteratively evaluates candidate sections and material properties, calculating utilization against all code criteria.

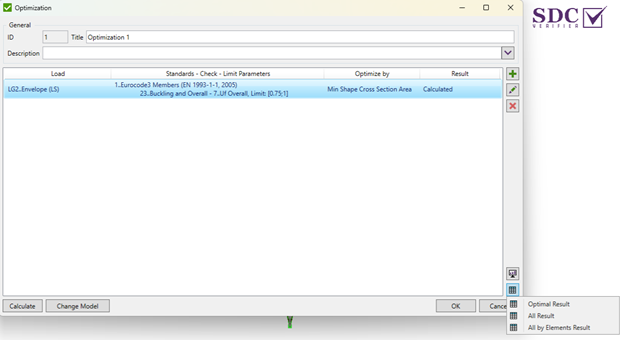

Image: Optimal Results option

Image: Optimal Results option

Once complete, review the results, which highlight the optimal section, predicted weight savings, and utilization ratios.

Image: Results of the optimization

Image: Results of the optimization

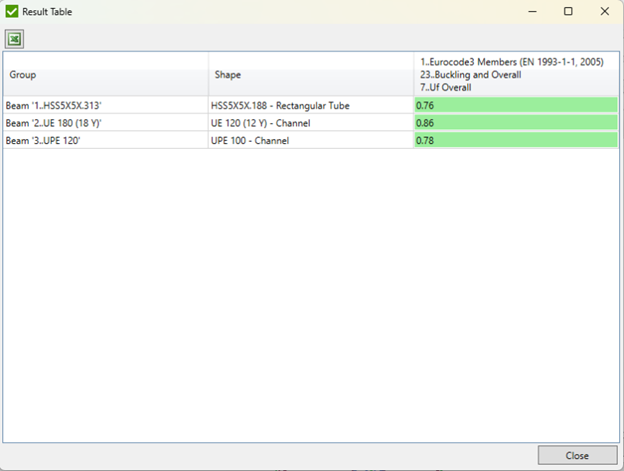

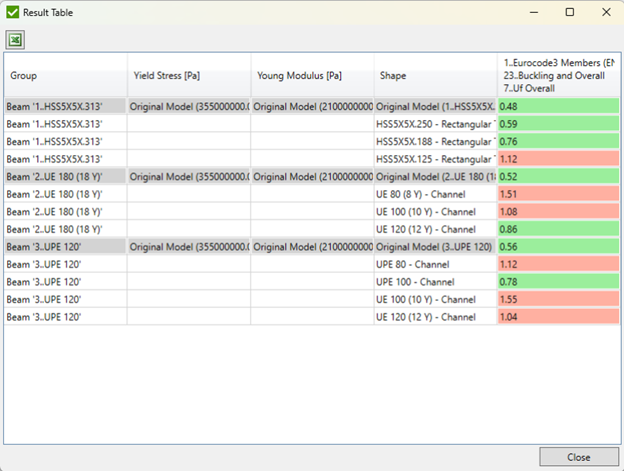

Image: Optimization results table

Image: Optimization results table

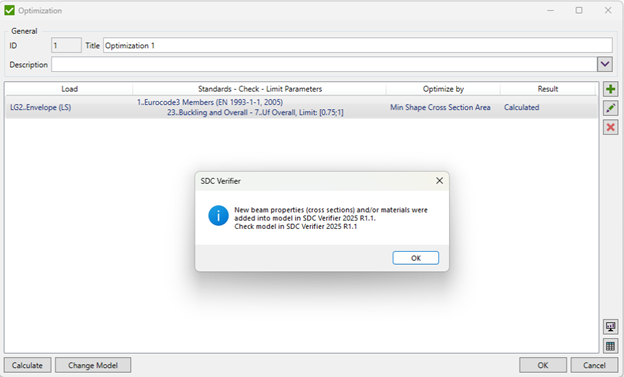

11. Apply Optimal Section to the Model
Integrate the optimized section back into the FEA model. This ensures the final design is both lightweight and fully code-compliant, ready for further analysis, fabrication, or audit documentation.

Image: Final window in the Optimization Tool before applying it to the model

Image: Final window in the Optimization Tool before applying it to the model

Example – Optimizing a Transmission Tower

Consider a typical transmission tower lattice structure composed of channel sections and rectangular tubes. These members are often selected from standard sections, resulting in a conservative, overbuilt design.

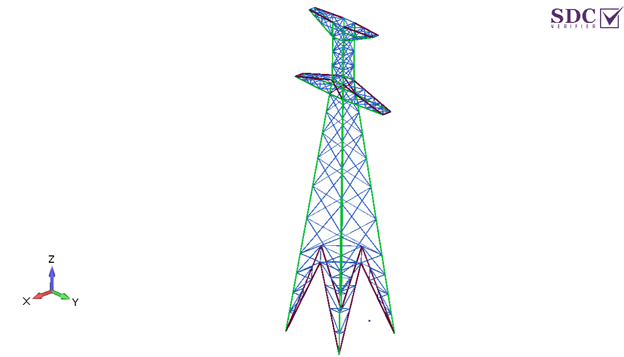

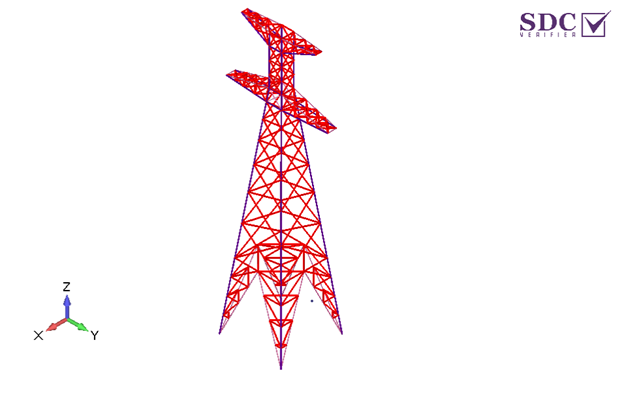

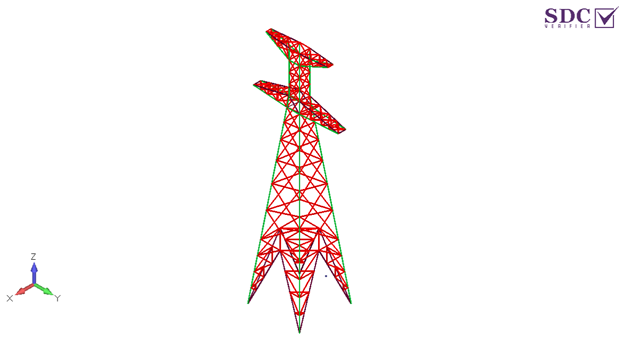

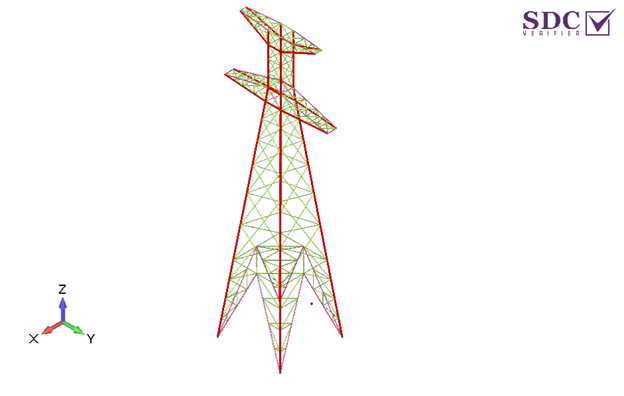

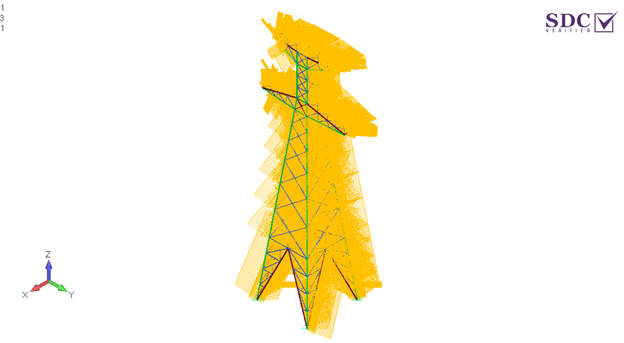

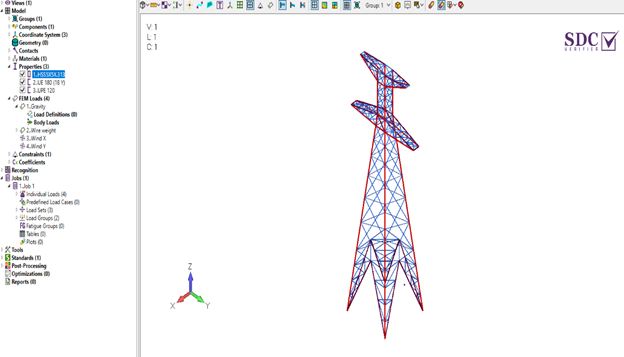

Image: Model of transmission tower used for optimization

Image: Model of transmission tower used for optimization

Initial Design

  • Member type: Standard channel sections and rectangular tubes
  • Total structure mass: 941 tons

Image: Mass of transmission tower

Image: Mass of transmission tower

  • Results of the calculations under loads:
  • Gravity load:

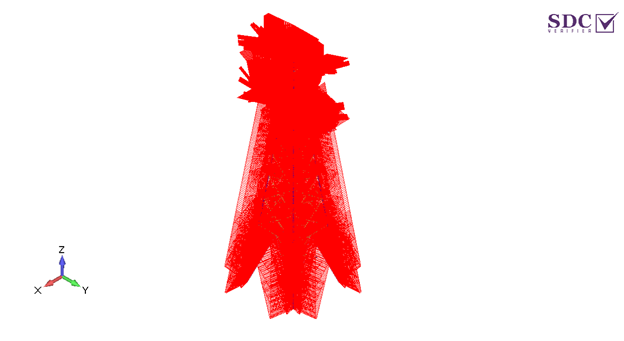

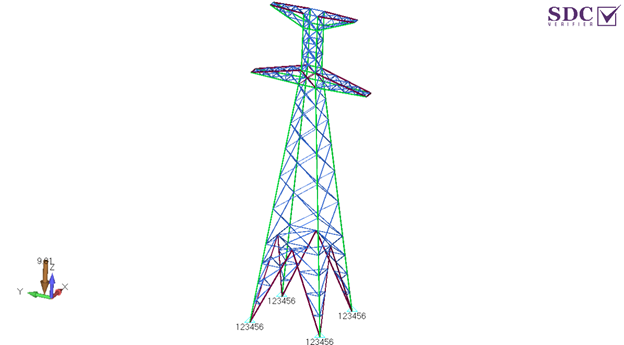

Image: Gravity load

Image: Gravity load

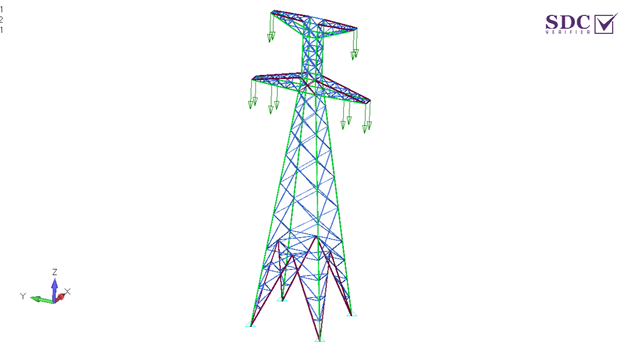

  • Wight of cables:

Image: Weight of cables

Image: Weight of cables

  • Wind load in X direction:

Image: Wind load in X direction

Image: Wind load in X direction

  • Wind load in Y direction:

Image: Wind load in Y direction

Image: Wind load in Y direction

  • Snow load:

Image: Snow load

Image: Snow load

  • Beams parameters:

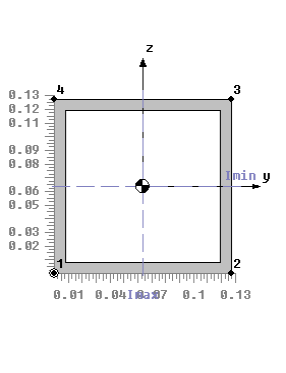

  • Highlighted HSS5X5X.313 beam:

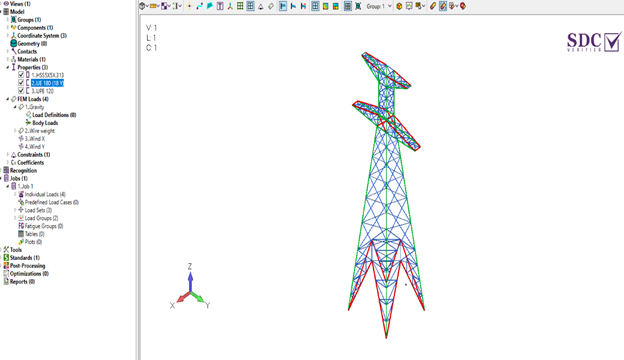

Image: HSS5X5X.313 beam

Image: HSS5X5X.313 beam

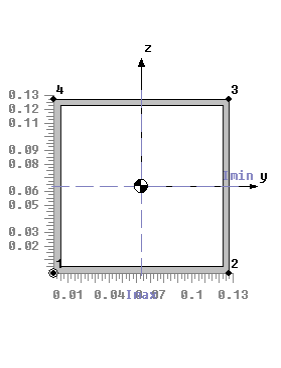

Image: Parameters of the beam

Image: Parameters of the beam

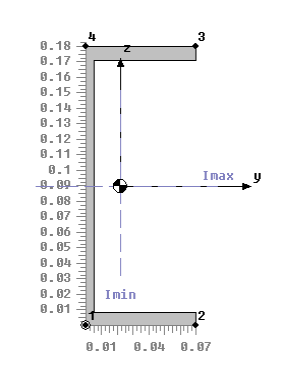

  • Highlighted UE 180 (18Y) beams:

Image: UE 180 (18Y) beams

Image: UE 180 (18Y) beams

Image: Parameters of the beam

Image: Parameters of the beam

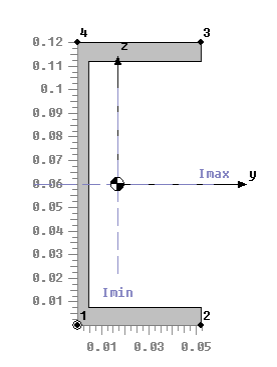

  • Highlighted UPE 120 beams:

Image: UPE 120 beams

Image: UPE 120 beams

Image: Parameters of the beam

Image: Parameters of the beam

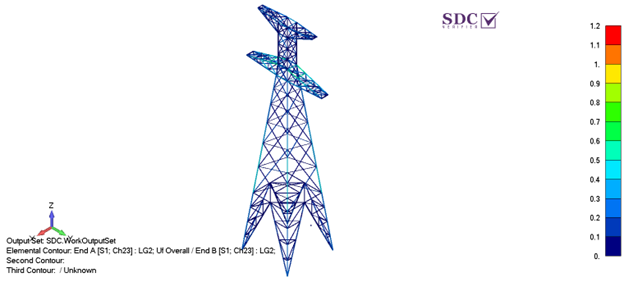

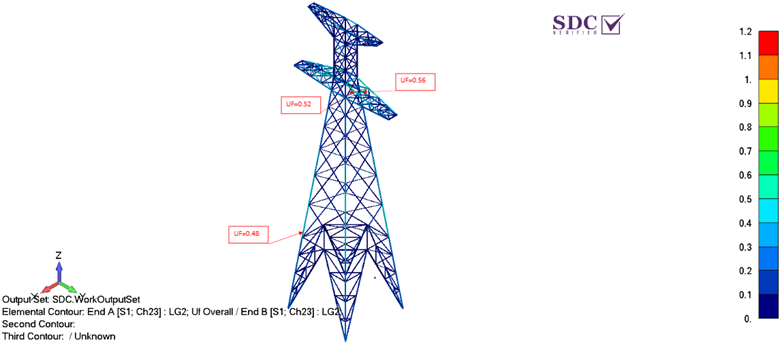

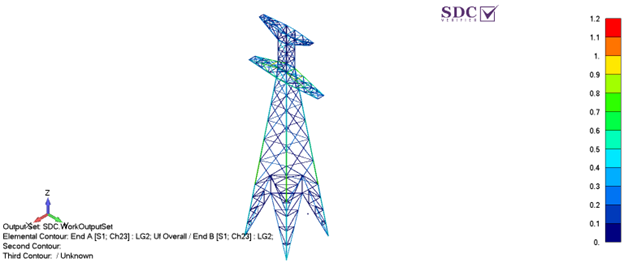

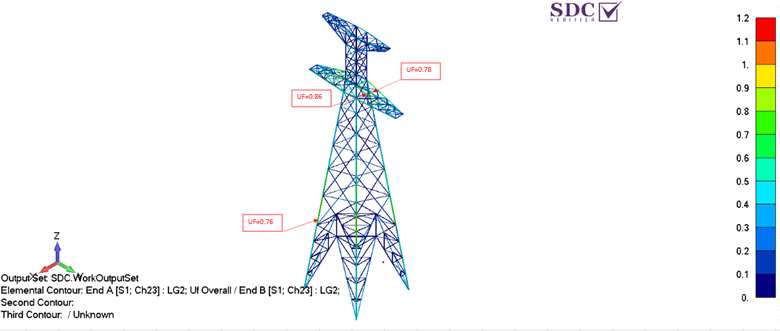

  • Utilization Factor (UF) before Optimization:

Image: UF before optimization

Image: UF before optimization

  • Compliance check results: All members pass Eurocode 3 checks, but many are underutilized; some slender members approach buckling limits but remain within safety factors.

Image: Results based on Eurocode 3 verification

Image: Results based on Eurocode 3 verification

While the design is safe, over half the material is effectively “idle,” representing unnecessary cost and added dead load.

Optimized Design

Using SDC Verifier’s Beam Rule Optimization Tool, the design was re-evaluated with:

  • Shape cross-section area set as the primary optimization variable
  • Yield stress fixed to the existing steel grade
  • Eurocode 3 buckling and deflection limits applied as constraints

Results:

  • Optimized sections replace oversized channel sections and rectangular tubes with smaller, code-compliant profiles:
  • Highlighted Optimization Beam ‘1.HSS5X5X.313’ HSS5XSX.188 m:1

Image: Optimization Beam '1.HSS5X5X.313' HSS5XSX.188 m:1

Image: Optimization Beam ‘1.HSS5X5X.313’ HSS5XSX.188 m:1

Image: Parameters of the beam

Image: Parameters of the beam

  • Highlighted ..Optimization Beam ‘2.UE 180 (18 Y)’ UE 120 (12 Y) m:1:

Image: Optimization Beam '2.UE 180 (18 Y)' UE 120 (12 Y) m:1

Image: Optimization Beam ‘2.UE 180 (18 Y)’ UE 120 (12 Y) m:1

Image: Parameters of the beam

Image: Parameters of the beam

  • Highlighted ..Optimization Beam ‘3.. UPE 120’ UPE 100 m:1:

Image: Optimization Beam '3.. UPE 120' UPE 100 m:1

Image: Optimization Beam ‘3.. UPE 120’ UPE 100 m:1

Image: Parameters of the beam

#image_title

Image: Parameters of the beam

  • Total steel weight:423 tons (27.7% reduction)

Image: Steel weight after optimization

Image: Steel weight after optimization

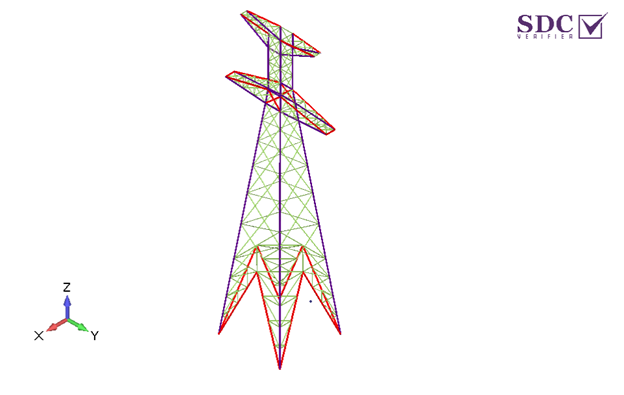

  • Utilization Factor (UF) after Optimization:

Image: UF after Optimization

Image: UF after Optimization

  • Compliance: All Eurocode 3 checks passed.

Image: Results of verification against Eurocode 3

Image: Results of verification against Eurocode 3

This example demonstrates how beam section optimization can transform a safe but inefficient design into a lighter, more cost-effective, and fully code-compliant structure without compromising safety.

Compliance and Reporting Benefits

A key advantage of using SDC Verifier’s Beam Rule is the automated generation of code-compliant verification reports. Every optimized member is documented against relevant standards—Eurocode 3, AISC, DNV, or project-specific criteria—ensuring that strength, buckling, and deflection checks are fully traceable.

These reports allow  designs to pass classification society reviews or internal QA checks without additional manual calculations. Engineers can also review and adjust transparent variable and limit settings, such as utilization factors, deflection limits, and material properties, giving full control over the optimization process while maintaining full compliance.

When Not to Optimize

Beam section optimization is highly effective, but there are scenarios where caution is required:

  • Stiffness-critical structures: Section sizes can still be optimized, but stricter serviceability requirements than standard Eurocode limits must be met—for example, in floors, roof trusses, or precision machinery supports.
  • Dynamic or impact-loaded structures: Heavier sections can improve vibration damping, fatigue resistance, and resilience under sudden loads, making weight reduction less desirable.

Conclusion

Beam section optimization is a safe and effective way to reduce weight while ensuring compliance with design codes. Properly applied, it lowers material costs, simplifies fabrication, and maintains structural integrity.
