What is Moment of Inertia , Centroid and Section Modulus Calculator

Free Moment of Inertia Calculator Functionality

SDC Verifier’s Free Moment of Inertia Calculator allows you to calculate properties for a wide range of standard profiles commonly used in structural and mechanical engineering:

  • Rectangular
  • Hollow Rectangular
  • Circular
  • Hollow Circular
  • I-Shape
  • T-Shape
  • Channel
  • L-Shape (Angle)
  • Z-Shape

These options cover both solid and hollow sections, as well as open profiles, making the tool versatile for different engineering scenarios.

Parameters calculated

The calculator provides accurate results for key geometric and structural properties, including:

🔹 Geometrical Characteristics

  • A – Area (mm²/in²): Total cross-sectional area.
  • P – Perimeter (mm/in): Outline length of the section.
  • Cy, Cz – Centroid coordinates (mm/in): Distance from origin to center of gravity along Y and Z axes.
  • θ (Theta) – Rotation angle of the principal axes with respect to the original centroidal coordinate system.

🔹 Moment of Inertia

Geometric Axes

  • Iy, Iz – Moments of inertia (mm⁴/in⁴): Resistance to bending about Y and Z axes.
  • Iyz – Product of inertia (mm⁴/in⁴): Indicates asymmetry of the section.
  • Ix – Second polar moment of area (mm⁴/in⁴): Resistance to torsion.

Principal Axes

  • I1, I2 – Moments of inertia (mm⁴/in⁴): About major and minor principal axes.
  • I12 – Product of inertia (mm⁴/in⁴): Should be zero for principal axes.
  • I3 – Second polar moment (mm⁴/in⁴): Sum of I1 and I2.

🔹 Elastic Section Modulus

  • Zy, Zz – Section modulus (mm³/in³): Indicates bending strength about Y and Z axes.
  • Z1, Z2 – About major and minor principal axes.

🔹 Plastic Section Modulus

  • Sy, Sz – Plastic section modulus (mm³/in³): Capacity of the section to resist plastic bending.
  • S1, S2 – About major and minor principal axes.

🔹 Distance from Centroid to Extreme Fibres

  • Top/Bottom and Right/Left fibre distances (mm/in): Used to calculate section modulus.

🔹 Radius of Gyration

  • ry, rz – About geometric Y and Z axes (mm/in): Indicates efficiency of area distribution.
  • rx – Radius of gyration about polar axis (mm/in), derived from polar moment of inertia.

🔹 Shear Area

  • Ay, Az – Effective shear areas (mm²/in²): For shear stress calculations.
  • r1, r2, r3

🔹 Radius of Gyration
ry, rz – About geometric Y and Z axes (mm/in): Indicates efficiency of area distribution.
rx – Radius of gyration about polar axis (mm/in), derived from polar moment of inertia.
r1, r2 – About principal axes (mm/in): Same as for Y and Z axes but relative to principal axes.
r3 – Polar radius of gyration about principal axes (mm/in).

🔹 Torsional and Warping Properties

  • J – Torsional constant (mm⁴/in⁴): Measures resistance to pure torsion.
  • Cw – Warping constant (mm⁶/in⁶): Indicates resistance to warping during torsion.
  • A1, A2 – Shear areas about principal axes (mm²/in²).

How to Use the Free Moment of Inertia Calculator? Step-by-Step Instructions

How to Use the Shape Calculator

  1. Select the Unit System
    • Choose between Metric or Imperial (default is Metric).
  2. Choose the Shape Type
    • Pick one of the available cross-section shapes:
Зображення1

Rectangular

Зображення2 2

Hollow Rectangular

Зображення3

Circular

Зображення4

Hollow Circular

Зображення5

I-Shape

Зображення6

T-Shape

Зображення7

Channel

Зображення8

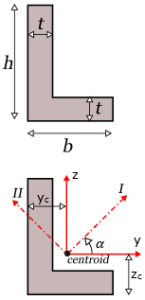

L-Shape

Зображення9

Z-Shape

3. Enter the Shape Parameters

  • Fill in the required dimensions for your selected shape:
    • Height (h) – e.g., 100 mm/in
    • Width (b) – e.g., 55 mm/in
    • Flange Thickness (tf) – e.g., 5.7 mm/in
    • Web Thickness (tw) – e.g., 4.1 mm/in
      (Note: Parameter names may vary depending on the selected shape.)

4. Get Instant Results

  • The calculator will display detailed properties automatically.

5. Receive Results by Email

  • Enter your email to get the results sent directly to your inbox.

Example: I-beam Section Output

 Basic Properties

  • Height (h) = 100 mm
  • Width (b) = 55 mm
  • Flange thickness (tf) = 5.7 mm
  • Web thickness (tw) = 4.1 mm

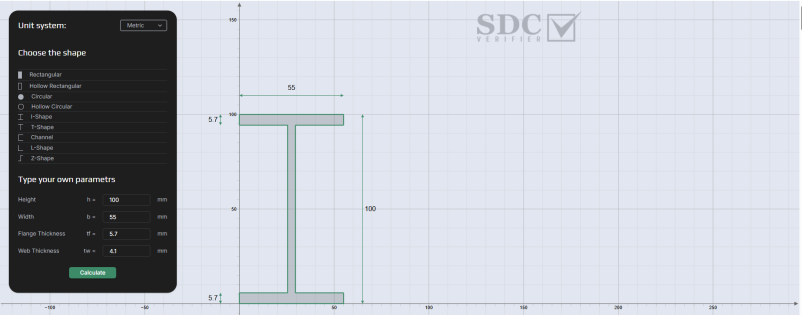

Screenshot 2025 06 02 163035

Results:

Geometrical characteristics

  • Angle of Major Principal Axis: 0.00°
  • Area (A): 990.26 mm²
  • Perimeter (P): 411.80 mm
  • Centroid Coordinates:
    • Y-axis (Cy): 27.50 mm
    • Z-axis (Cz): 50.00 mm

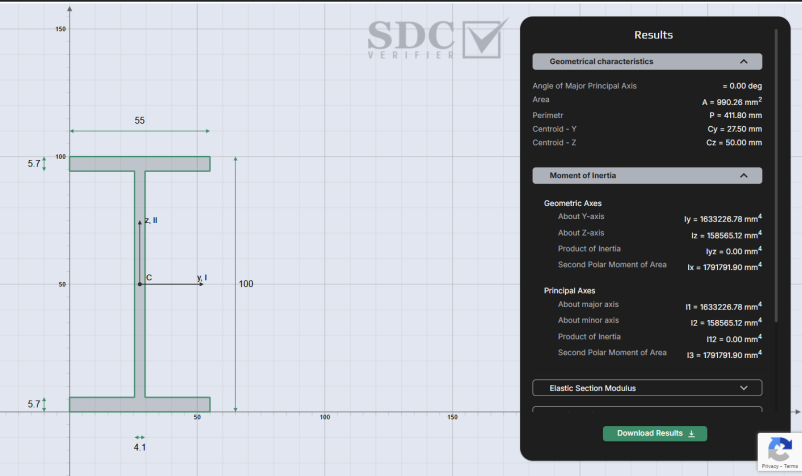

Screenshot 2025 06 02 162954

Moments of Inertia (Geometric Axes)

  • Moment of Inertia about Y-axis (Iy): 1,633,226.78 mm⁴
  • Moment of Inertia about Z-axis (Iz): 158,565.12 mm⁴
  • Product of Inertia (Iyz): 0.00 mm⁴
  • Second Polar Moment of Area (Ix): 1,791,791.90 mm⁴

Moments of Inertia (Principal Axes)

  • Major Axis (I₁): 1,633,226.78 mm⁴
  • Minor Axis (I₂): 158,565.12 mm⁴
  • Product of Inertia (I₁₂): 0.00 mm⁴
  • Second Polar Moment of Area (I₃): 1,791,791.90 mm⁴

Elastic Section Modulus

  • About Y-axis (Zy): 32,664.54 mm³
  • About Z-axis (Zz): 5,766.00 mm³
  • Major Axis (Z₁): 32,664.54 mm³
  • Minor Axis (Z₂): 5,766.00 mm³

Plastic Section Modulus

  • About Y-axis (Sy): 37,609.26 mm³
  • About Z-axis (Sz): 8,993.59 mm³
  • Major Axis (S₁): 37,609.26 mm³
  • Minor Axis (S₂): 8,993.59 mm³

Distances from Centroid to Extreme Fibers

  • Top Fiber: 50.00 mm
  • Bottom Fiber: 50.00 mm
  • Right Fiber: 27.50 mm
  • Left Fiber: 27.50 mm

Radius of Gyration

  • About Y-axis (ry): 40.61 mm
  • About Z-axis (rz): 12.65 mm
  • Polar Radius (rx): 42.54 mm

Shear Areas

  • About Y-axis (Ay): 522.50 mm²
  • About Z-axis (Az): 410.00 mm²
  • Major Axis (A₁): 522.50 mm²
  • Minor Axis (A₂): 410.00 mm²

Torsional and Warping Properties

  • Torsional Constant (J): 8,956.83 mm⁴
  • Warping Constant (Cw): 351,378,405.64 mm⁶

Let’s calculate the moment of inertia of a rectangle with the following dimensions:

  • Width (b): 55 mm
  • Height (h): 100 mm

The formula for the moment of inertia (I) is:

image 1

Substitute the given values:

image 5
image 6
image 3
image 4

Result:

image 2

This value represents the moment of inertia about the base of the rectangle (horizontal axis). It’s a key parameter in assessing the bending resistance of a section.

  • No Registration: Access all the features instantly without the need to sign up. Start calculating right away with full functionality.
  • Instant Results: Receive results in real time—quick, reliable, and accurate calculations without any delays.
  • Intuitive Interface: The user-friendly interface makes it easy to perform calculations, even for those with minimal technical experience.
  • Accuracy of Calculations: Calculations are based on analytical formulas for standard shapes and assume ideal geometry.
  • Saving Results, PDF, Export: Save your calculations, export them to PDF for reports, or via email.

The moment of inertia is a measure of an object’s resistance to bending or rotation. In structural engineering, it’s used to determine how much a beam or section will deflect under load.

The section modulus is a geometric property that represents the strength of a section in bending. It is calculated as the moment of inertia divided by the distance from the centroid to the outermost fiber.

Iz is the moment of inertia about the Z-axis, while Iy is the moment of inertia about the Y-axis. The values depend on the geometry and orientation of the cross-section.
