Well designed tutorials to get familiar with SDC Verifier. Tutorials are available for Ansys, Femap and Simcenter. They are suitable both for code checking and report generating practices.
An introduction tutorial to get familiar with the software. It demonstrates how to create a project, define loads and load combinations, and quickly generate calculation results report. This step-by-step tutorial is designed to get you started with main SDC Verifier features: Launch SDC Verifier; Creating new project; Create Combinations and Envelope; […]
The tutorial demonstrates how to prepare full calculation report using Report Wizard. Model description, plots, and various tables are explained in details. This step-by-step tutorial is designed to cover SDC Verifier topics, namely : Template Reports; First page settings; Model entities in report; Predefined tables; Operations with tables and plots […]

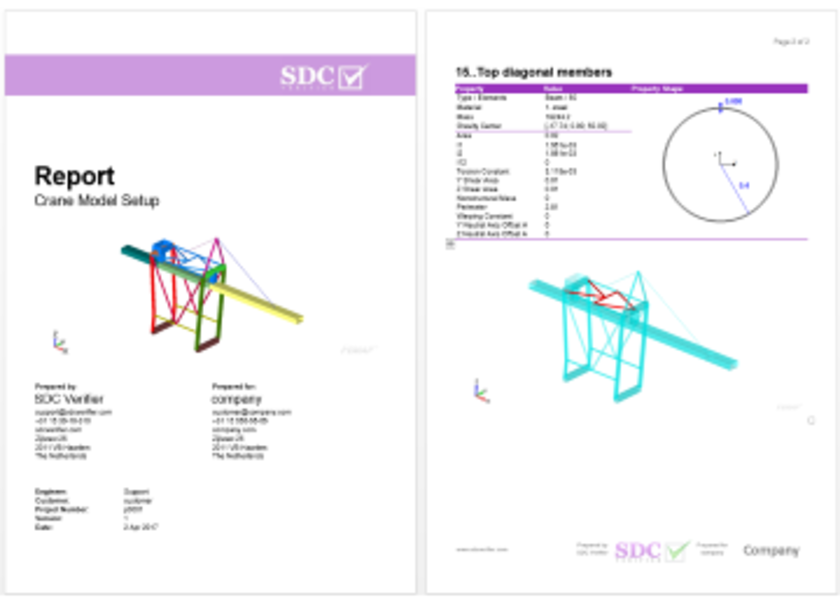

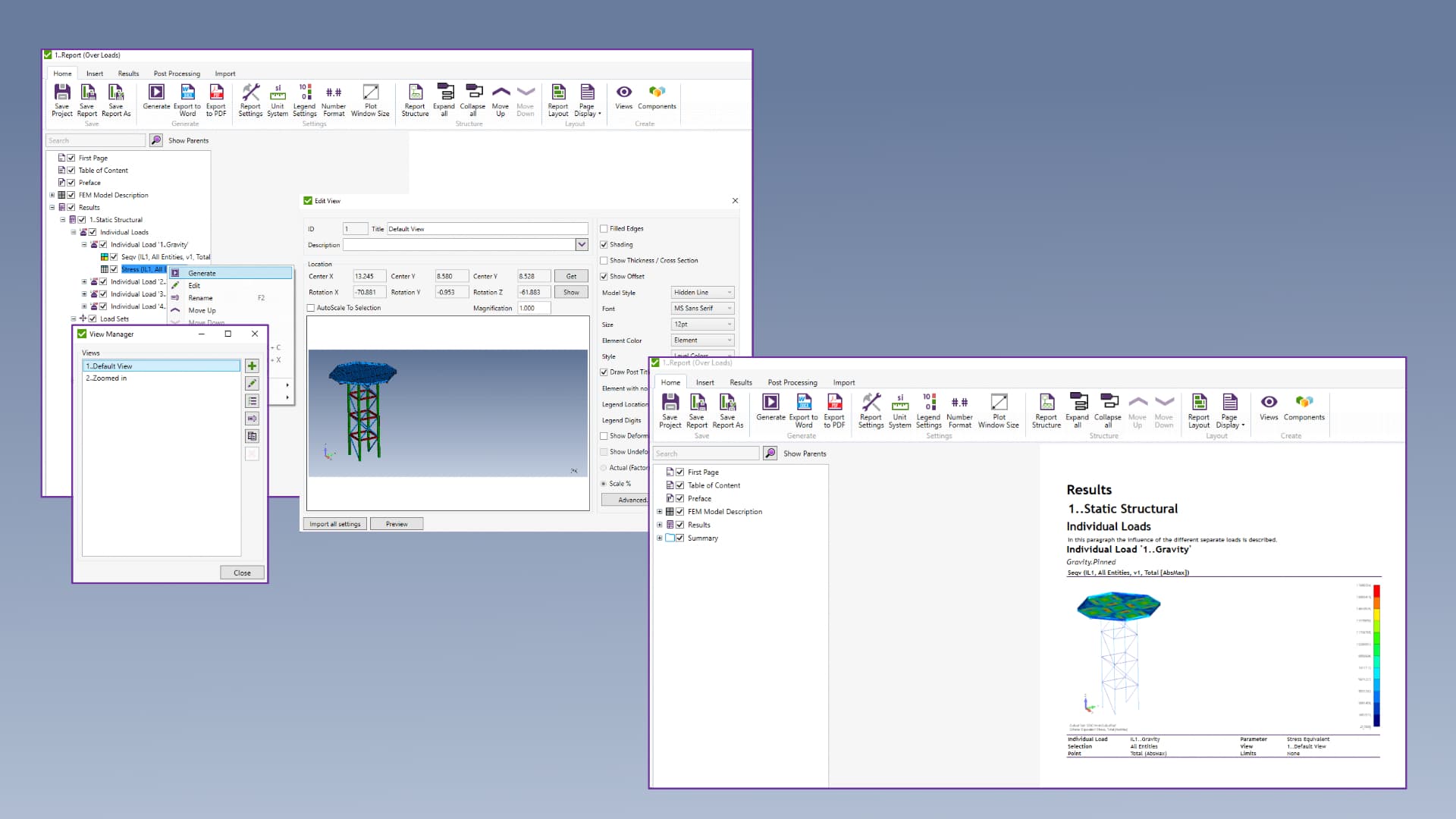

Report Designer is an advanced tool to create fully customisable reports with control over the structure and possibility to modify and regenerate a part of the report.
Weld Strength Check

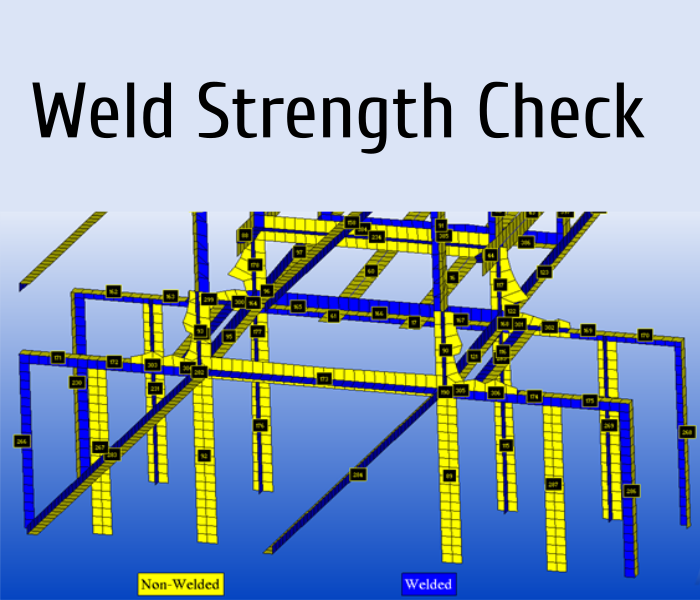

This step-by-step tutorial demonstrates how to perform the weld strength check according to Eurocode 3, DNV OS-C101-LRFD, DNV OS-C201-WSD standards in SDC Verifier. The following steps are covered: Weld Finder Tool detailed review; Weld Stress calculations; Standards creation; Report preparation and results.
Fatigue check according to the Eurocode3 and FEM 1.001 standards is performed. Welds are automatically recognized by the Weld Finder. This step-by-step tutorial demonstrates how to implement the fatigue check according F.E.M. 1.001 in SDC Verifier. The following steps are covered: FEM 1.001 Fatigue detailed review; Implementation in SDC Verifier; […]
API ISO Norsok
A tubular offshore steel structure is verified according to the API RP-2A LRFD, ISO19902 and Norsok N004 standards. The buckling length is recognized automatically. In this tutorial, API 2A RP Beam Design Checks are reviewed in details. A beam model of a steel frame has been used as a start […]
AISC 360-10 and Eurocode 3
The tutorial illustrates how to perform Member Check according to the AISC 360-10. A beam model of a lattice structure has been used as a start FEM model. In this tutorial, AISC 360-10 Beam Design Checks are reviewed in details. A beam model structure has been used as a start […]
Plate Buckling DNV
In this tutorial you will perform Plate Buckling check according to DNV RP-C201 2010 standard on a part of the ship model. It is an important aspect in offshore construction. Each one plate should be checked carefully, because it influences on the strength and stability of the whole construction. SDC […]
Plate Buckling ABS
Plate Buckling check according to the ABS 2014 is performed on a part of the ship. The plates with dimensions are recognized automatically with the help of the Panel Finder tool. What we will reveal in this tutorial: A part of a plate model of the ship has been used […]
Joint Check is a part of the API RP-2A LRFD standard (offshore check) which verifies the strength of tubular construction under tension or compression members. Let make some definition: Joint is a node where two or more incline elements are connected. Chord is a set of non-welded elements that form […]
Custom Bolt Check

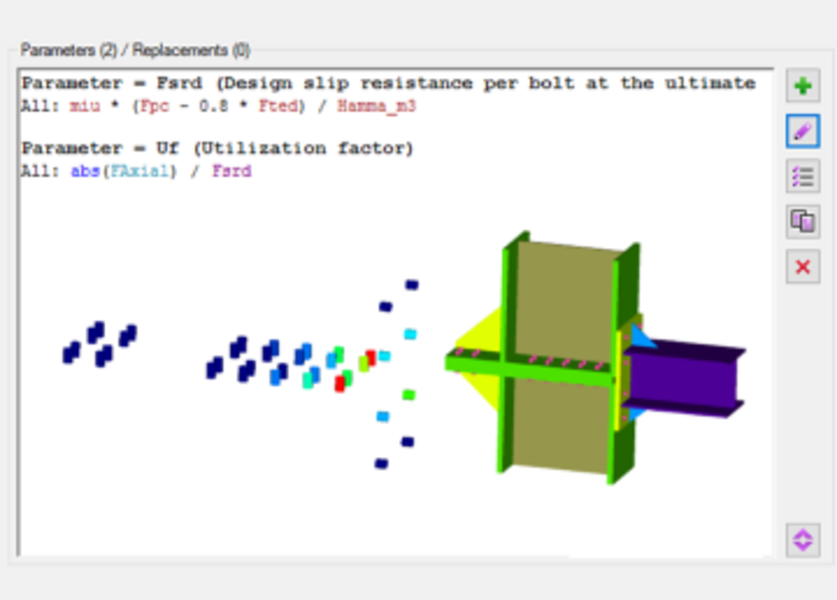

A part of the gantry crane structure with bolted connection detail has been verified with Axial and Shear Bolt checks implemented as custom checks. In this tutorial the procedure of creation custom check using SDC Verifier is reviewed in details. Part of the gantry crane structure with bolted connection detail has […]
