Oil & Gas Industry

Why SDC Verifier?

SDC Verifier is a leading oil and gas engineering software for structural design and analysis, ensuring compliance with industry standards.

Accuracy, speed and scalability of simulation and verification of Oil and Gas industry structures are the main reasons for using SDC Verifier. Real-world behavior of Storage Tanks, Pressure Vessels, Oil Rigs, Flare Stacks, FPSOs, Refinery Structures, and various other complex structural configurations can be accurately captured and analyzed.

Derricks, masts, distillation columns, reactors, fractionation towers, and different types of substructures and support structures can be easily designed by engineers and verified with the local and global rules for the Oil and Gas industry.

The benefits of SDC Verifier for Oil and Gas industry structures simulation and verification are the seamless FEA design or import of the CAD model for simulation. Automatic detection of beams, welds, joints, and plates for further use in checks, a constantly growing library of standards and rules for the Oil and Gas industry, have proven their effectiveness in tackling challenging tasks.

Engineers appreciate SDC Verifier’s features of structural optimization according to predefined parameters and automatic report generation that are essential for engineering results presentation.

Structures

#Storage Tanks
#Pressure Vessels
#Oil Rigs
#Flare Stacks
#FPSOs
#Refinery Structures

Components

#Derricks
#masts
#distillation columns
#reactors
#fractionation towers

Power Your Oil & Gas Projects with SDC for Ansys and Femap

  SDC Verifier
Try SDC Verifier for Free Explore Standalone Solution
Start Free Trial Explore Integration Options
Start Free Trial Explore Integration Options

SDC Verifier

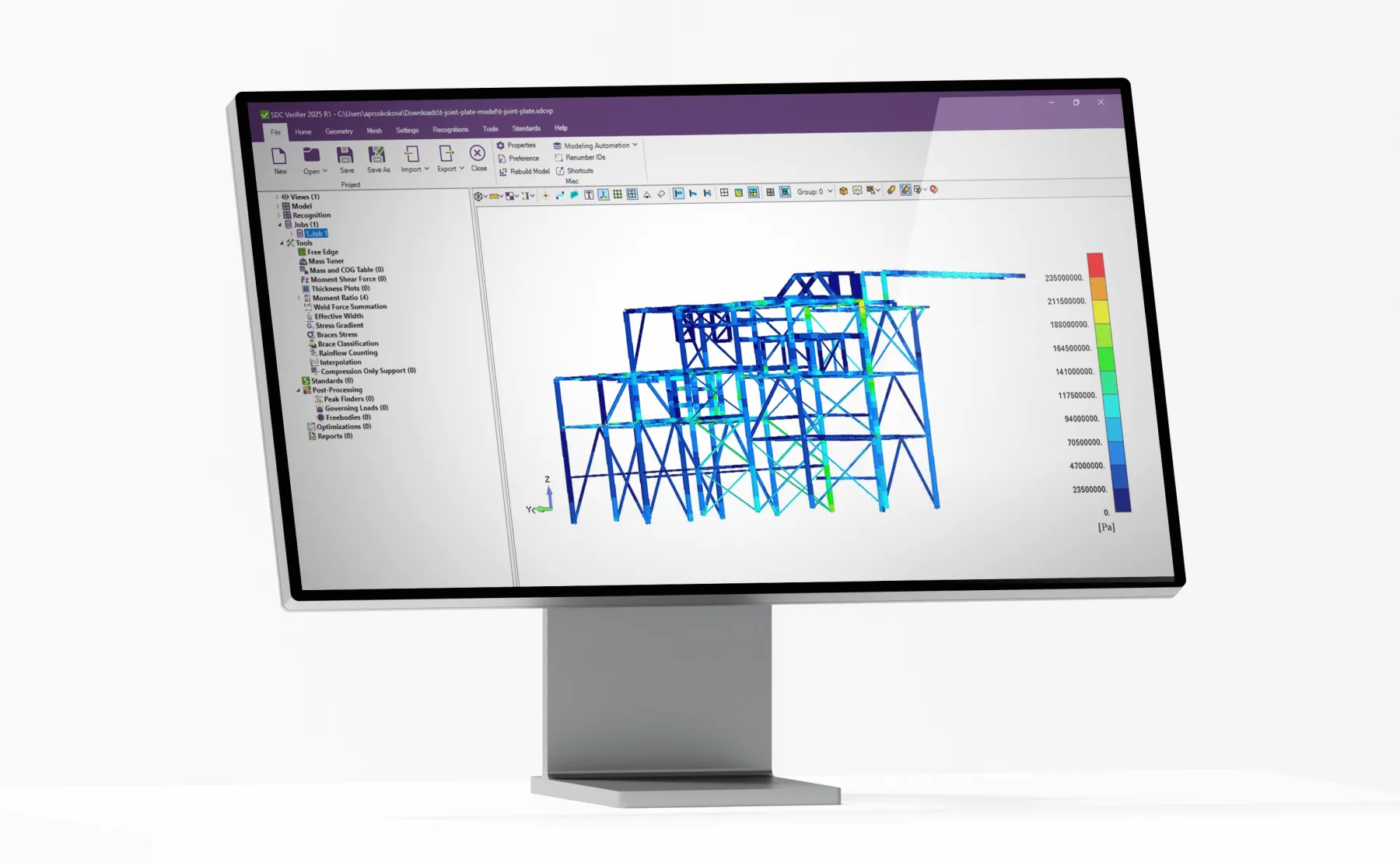

Perform structural analysis and automated code compliance checks, obligatory in oil & gas industry, using a powerful built-in Nastran solver — no external software required.

  • Proven Solver Built-In: Run simulations directly with SDC Verifier’s trusted Nastran engine for fast, reliable results in your oil & gas projects.
  • Automated Verification: Instantly check structures against 50+ global standards and custom criteria.
  • Load Application: Apply wave, wind, and current loads with ease, essential for oil & gas analysis.
  • Fast Reporting: Generate professional, standards-compliant reports in just one click.

SDC for Ansys

Integrates seamlessly with Ansys Mechanical to simplify structural verification for oil & gas projects.

  • Work Directly in Ansys: No need to rebuild models.
  • Automatic Detection: Recognize welds, beams, and connections instantly.
  • Design Optimization: Improve designs using code-checks from 50+ standards library (DNV, AISC, ISO, and others).
  • Check Structures: Storage tanks, pressure vessels, oil rigs, flare stacks.

SDC for Femap

A verification solution tailored for Simcenter Femap to check your oil & gas structures quicker.

  • Direct Integration: Analyze oil and gas models without leaving Femap.
  • Smart Recognition: Automatically detect plates, beams, and welds, critical in oil & gas industry.
  • Standards Compliance: Check designs against 50+ engineering codes, including DNV, AISC, and ISO, etc.
  • Verify: derricks, masts, distillation columns, reactors, and more.

Standards

AIJ Standards

AIJ Standards

Type Year

AIJ (2005 Edition, 2017)

2017

more
AISC Standards

AISC Standards

Type Year

AISC 360-10 Members (14th, 2010)

2010

AISC ASD (9th, 1989)

1989

AISC 360-22 Members (2022)

2022

more
API Standards

API Standards

Type Year

API RP 2A-LRFD (1st, 1993)

1993

API RP 2A-WSD (21st, 2007)

2007

more
ASME Standards

ASME Standards

Type Year

ASME VIII (Div 2, 2010)

2010

more
DNV Standards

DNV Standards

Type Year

DNV CN30 Plate Buckling (1995)

1995

DNV OS-C101-LRFD Weld Strength (2011)

2011

DNV OS-C201-WSD Weld Strength (2011)

2011

DNV RP-C201 Plate/Stiffener Buckling (2010)

2010

DNV RP-C203 (2016)

2016

more
ISO

ISO

Type Year

ISO 19902 (1st, 2007)

2007

more
NORSOK Standards

NORSOK Standards

Type Year

Norsok N004 (Rev. 3, 2013)

2013

more
VDI Standards

VDI Standards

Type Year

VDI 2230 (Part 1, 2015)

2015

more
