Plates Thicknesses Plot

Plates Thicknesses Plot is FREE tool for Femap that displays plate elements thicknesses using special plot with labels.

The plates thickness plot is a tool that displays the thickness of elements using labels with values and colors based on their properties. It enables the user to easily and accurately perform a visual inspection of the thicknesses.

Requirements: The tool supports Femap version 11.2 and above.

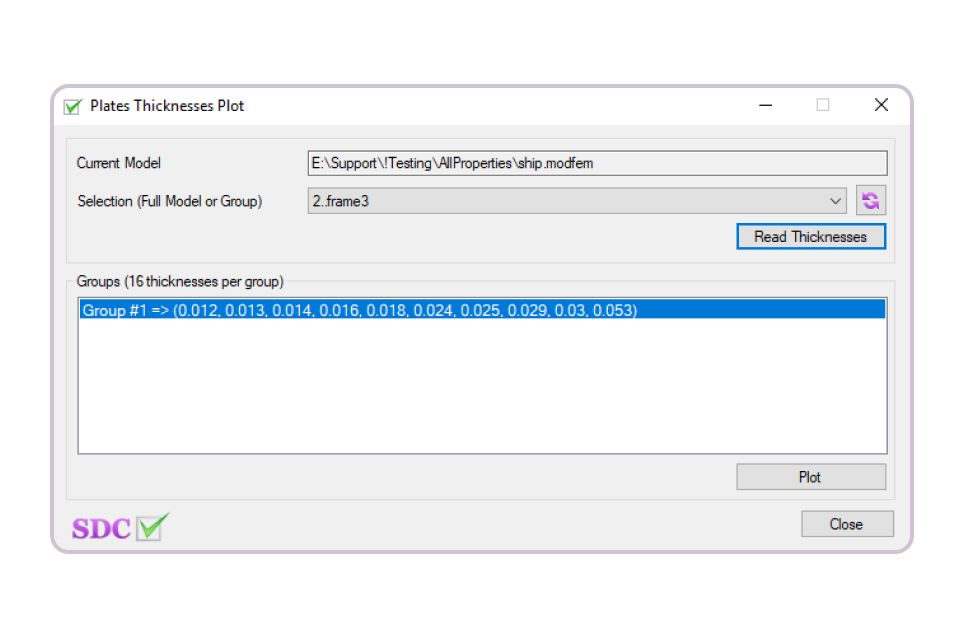

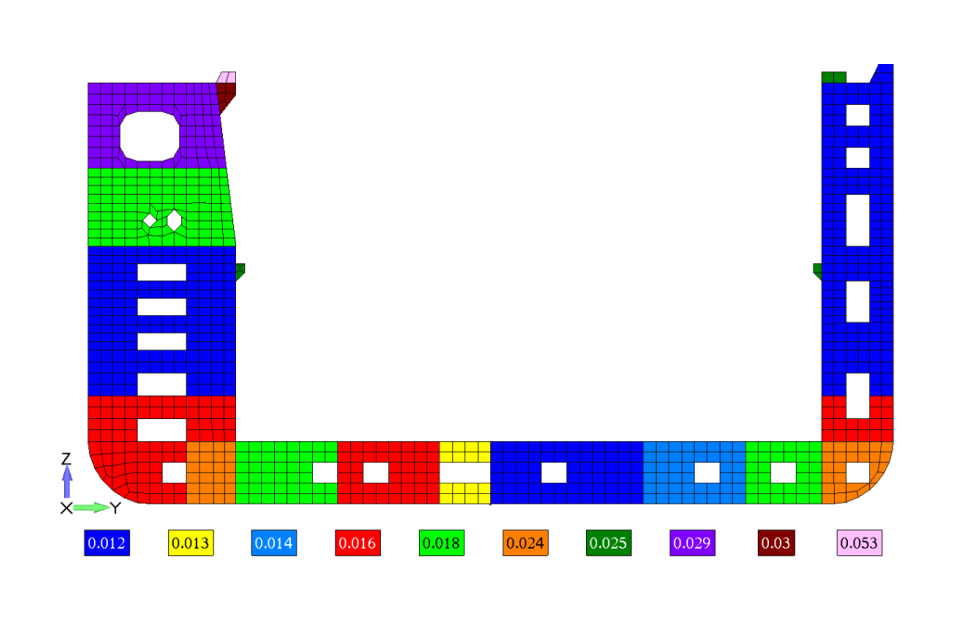

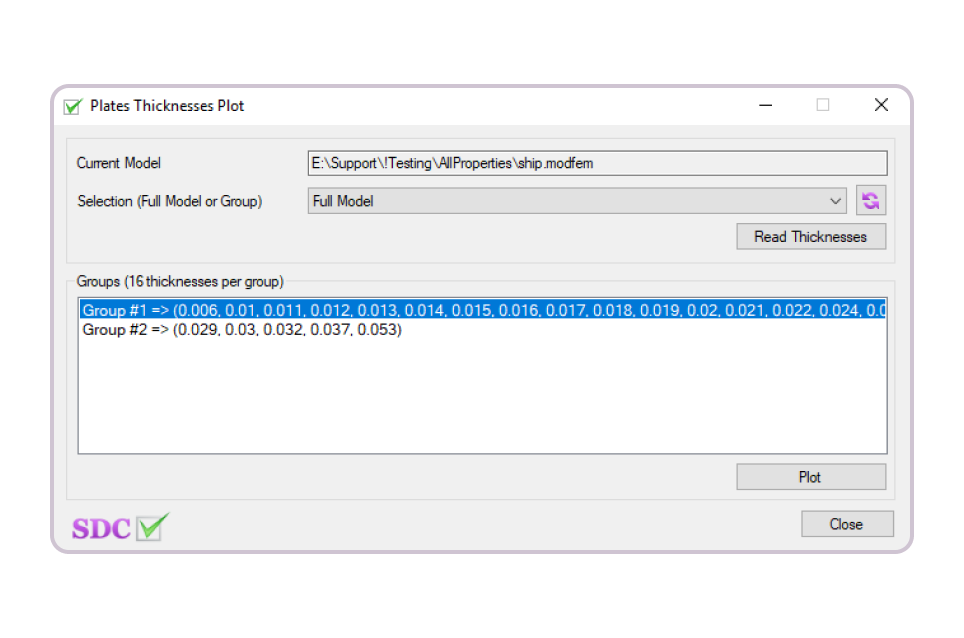

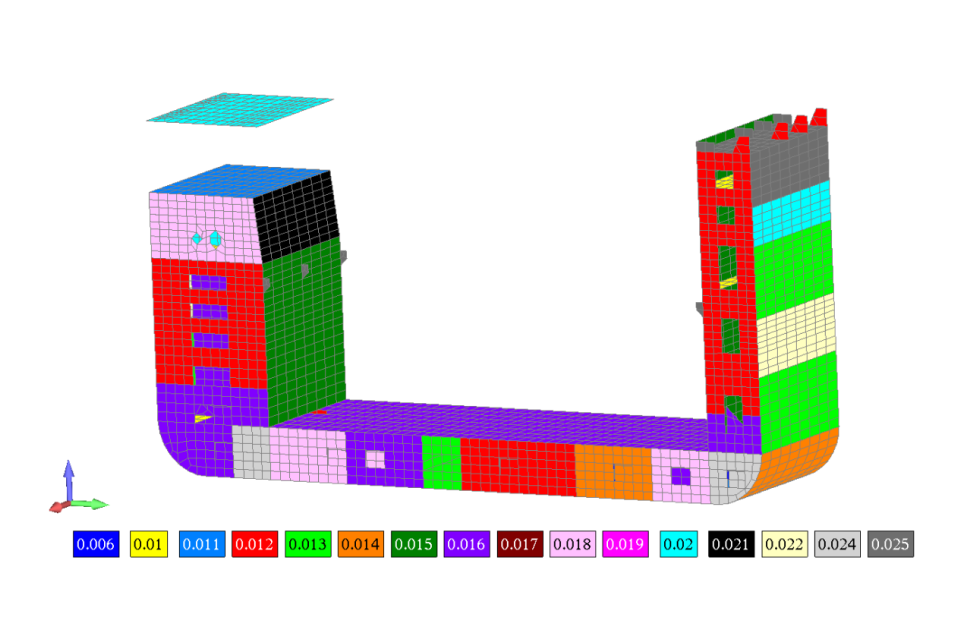

The tool reads all thicknesses from selection and represents them in picture. Labels can be shown vertically or horizontally, as convenient for the user:

Plates Thickness Plot is a standalone tool, after installation, a shortcut appears on your desktop.
