How to Calculate Moment of Inertia Without CAD: A Faster Way for Engineers

Moment of inertia, also referred to as rotational inertia , or the second moment of area, is a fundamental property that quantifies a body’s resistance to angular acceleration about a specific axis. Just as mass resists linear acceleration, moment of inertia resists rotational motion.  For any given axis, the area moment of inertia depends on how the shape’s area is distributed relative to that axis—larger values result from more area located farther from the axis.

The formula of the moment of inertia is:

In structural engineering, moment of inertia is critical in the analysis and design of elements like beams, where it governs how much resistance a section offers to bending. It directly influences bending stress and deflection under transverse loads. In this context, it’s not about mass per se, but rather the geometric distribution of area about a centroidal axis—commonly referred to as the second moment of area, expressed as:

And

In short, moment of inertia is essential for evaluating structural stiffness , predicting deflections, and ensuring stability in design.

Why Do Engineers Care About Moment of Inertia?

Moment of inertia directly affects:

• Beam Pre-Sizing
  Pre-sizing beams involves selecting an initial cross-section that meets bending and deflection criteria before detailed analysis. In this stage, engineers use the moment of inertia I to estimate how stiff a section will be under expected loading. A higher I means the beam will deflect less and resist bending better, making it suitable for longer spans or heavier loads.
• Structural Stability Checks
  When assessing the strength and stability of 3D engineering objects, the moment of inertia is a critical factor. Euler buckling, lateral-torsional buckling, and even plate buckling calculations are directly tied to I and its orientation.
• Torsional Resistance Comparison
  Torsional resistance comparison involves evaluating how different cross-sections perform under applied torque. This is primarily governed by the polar moment of inertia (J or Iz), which measures a cross-section’s ability to resist twisting under applied torque. Unlike bending resistance, which depends on linear axis moments (Ix, Iy), torsional resistance is governed by how the area is distributed radially from the center. A higher polar moment of inertia means more torque is required to produce angular deformation, making it critical for evaluating shaft design, torsional stiffness, and rotational stability—regardless of material properties.

So, the moment of inertia quantifies how effectively a structural section resists bending and torsion. It’s a fundamental parameter in beam pre-sizing, stability assessment, and torsional resistance comparison—critical for making informed design decisions early in the engineering process.<!– wp:heading –>
<h2 class=”wp-block-heading”>How Engineers Traditionally Calculate Moment of Inertia?</h2>
<!– /wp:heading –>

In structural and mechanical engineering, calculating the moment of inertia is fundamental for assessing how a section resists bending or torsional loads. Although modern software tools offer fast and automated solutions, many engineers still rely on manual or semi-manual methods—especially during early-stage design, hand checks, or code validation tasks.

These traditional techniques are deeply rooted in engineering education: most engineers are taught in universities to perform these calculations by hand using standard formulas. While these methods remain valuable for understanding the fundamentals and verifying results, they are significantly slower and more time-consuming compared to automated tools—particularly when dealing with complex or custom geometries.

Manual Calculation Using Standard Formulas

Engineers are taught to calculate the area moment of inertia using analytical formulas derived from calculus. For standard shapes—rectangles, circles, I-beams—these formulas are well-established and widely used.

For example, the moment of inertia of a rectangle about its centroidal horizontal axis (neutral axis) is:

Where:

• b = base width
• h = height (depth)

This formula is derived by integrating the elemental areas relative to the centroid:

Similarly, for a rectangle measured about its base (not the centroidal axis), the moment of inertia is:

This shift in axis location is addressed through the parallel axis theorem, where:

Where:

• A = cross-sectional area
• d = distance from the centroid to the new axis

For more complex shapes like I-beams, engineers manually decompose the cross-section into rectangles and apply:

Where each sub-section’s inertia and its distance to the centroidal axis are considered. A simplified formula for symmetric I-sections is sometimes used:

Where:

• bf,hf: Width and height of the top flange
• bb,hb: Width and height of the bottom flange
• Aw: Area of the web
• dw: Distance from the web’s centroid to the neutral (centroidal) axis of the entire section
• db Distance from the bottom flange’s centroid to the neutral axis

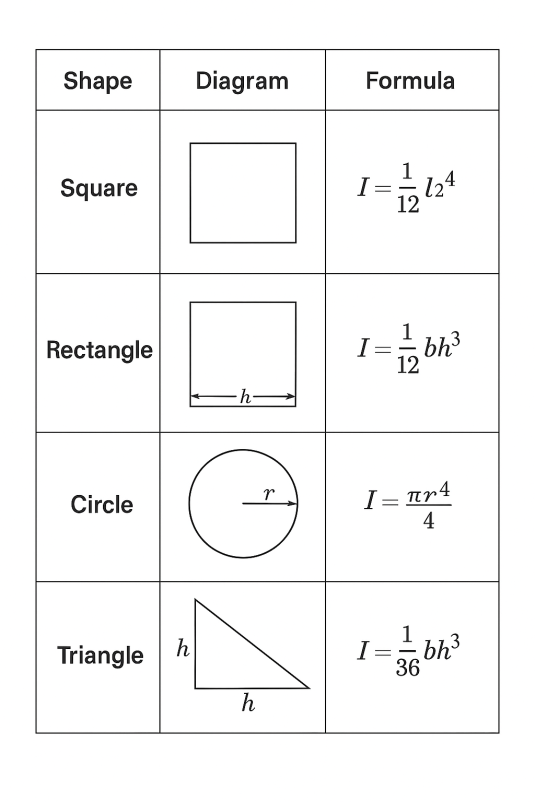

See the table with the most common shapes engineers often calculate:

While accurate, this method becomes tedious with repeated geometry changes or custom profiles.

2. Spreadsheet Templates

Another way to calculate the moment of inertia is using spreadsheet templates for engineers. Instead of relying on time-consuming hand calculations, engineers can use pre-built spreadsheet templates with embedded formulas to input section dimensions and instantly receive accurate results.

These templates standardize the calculation process. For example, a spreadsheet can include formulas for common cross-sections—rectangular, circular, I-beams—allowing users to switch parameters and instantly compare results. This is particularly useful for quick iterations during early design stages or verifying complex software output.

However, spreadsheets have limitations:

• They must be manually updated for new geometries
• They’re prone to errors if formulas or references are altered
• They rarely handle arbitrary shapes or built-up composite sections effectively

Spreadsheets work well in controlled environments but scale poorly in iterative or highly customized designs.

3. CAD and FEA Software Sketching for Basic Sections

Many engineers resort to sketching the cross-section in CAD tools (e.g., SolidWorks, AutoCAD) or pre-processor environments in FEA software (e.g. Ansys) to obtain section properties such as:

• Moment of inertia (Ix, Iy)
• Section modulus
• Centroid location
• Torsional constant

These tools offer visual confirmation and are especially helpful when:

• Geometry is irregular or asymmetrical
• Manual decomposition is time-consuming
• You’re preparing for detailed simulation work

While convenient, this approach still involves:

• Manually redrawing or editing sketches with each design iteration
• It requires the license which you must pay as well
• Exporting or interpreting values from property reports
• Limited applicability during preliminary design stages or quick hand-checks

Key Insight: These Methods Work, But Slow Down Iteration

Each traditional method—formulas, spreadsheets, or CAD tools—has its merit. They’re well-suited for early-stage calculations, verification, or educational purposes. Yet, they share a common drawback: they slow down iteration.

When evaluating multiple design options, modifying cross-sections, or checking compliance with code-defined criteria, relying on manual methods introduces delays and risks:

• Updating spreadsheets repeatedly for every small dimension change
• Re-sketching in CAD each time a flange thickness is revised
• Copying values back and forth between tools

As design becomes more integrated and data-driven, engineers need tools that allow faster section property evaluation, especially for non-standard profiles and dynamic geometries.

Let’s be clear: CAD is powerful. But sometimes, it’s just too much — especially when all you need is to check a section modulus or moment of inertia.

1. Takes Time to Set Up Geometry

Even for a simple task, opening CAD, creating a section profile, and making sure your units, layers, and plot settings are all correct can take longer than actually solving the problem. That’s wasted time if you’re just trying to verify the Ix of a Z-shape or check the plastic modulus.

2. Not Optimized for Beam Section Iteration

Iterating through different standard sections in CAD is painful. Switching profiles, redrawing sketches, and recalculating manually every time is a chore. This isn’t what CAD was built for — it’s not a beam calculator; it’s a design platform.

3. Requires CAD Licenses/Access

Not every engineer has CAD installed, licensed, or even available on their machine. Relying on it for basic checks creates a bottleneck. You shouldn’t need a $3,000 tool just to confirm the basic property of a steel section.

“I only open CAD if I’m modeling — not to check a Z-shape’s Ix.”, say engineers.

If you’re searching for ways to calculate moment of inertia without CAD, you’re not alone — and you’re not wrong. Use the right tool for the job. For quick structural checks, especially during concept or verification stages, a lightweight, purpose-built solution saves time, frustration, and money.

To speed up beam property checks in structural and mechanical engineering, SDC Verifier, structural analysis software, has developed a free moment of inertia calculator that delivers instant and accurate cross-sectional property results. This tool supports a wide range of standard profiles and outputs everything from moment of inertia and section modulus to torsional and warping characteristics—without requiring any login or software installation. Moreover, results are based on idealized geometry and assume no manufacturing tolerance, weld, or hole effects.

Supported Shapes

The calculator accommodates commonly used structural profiles, including both solid and hollow, as well as open cross-sections:

• Rectangular
• Hollow Rectangular
• Circular
• Hollow Circular
• I-Shape
• T-Shape
• Channel
• L-Shape (Angle)
• Z-Shape

This versatility makes the tool applicable to various design scenarios in civil, mechanical, and offshore engineering.

Parameters Calculated

The calculator computes a comprehensive set of geometric and structural properties, organized into clear categories:

Geometrical Characteristics

• Area (A): Total cross-sectional area
• Perimeter (P): Section outline length
• Centroid Coordinates (Cy, Cz): Position of the center of gravity
• Principal Axis Rotation (θ): Angle between geometric and principal axes

Moment of Inertia

Geometric Axes:

• Iy, Iz: Moments of inertia about Y and Z axes
• Iyz: Product of inertia
• Ix: Polar moment of inertia (torsion resistance)

Principal Axes:

• I1, I2: Inertia about major and minor axes
• I12: Product of inertia (zero for principal axes)
• I3: Polar moment of inertia in principal coordinates

Section Modulus

Elastic Section Modulus:

• Zy, Zz: Bending strength about Y and Z axes
• Z1, Z2: About principal axes

Plastic Section Modulus:

• Sy, Sz: Capacity to resist plastic bending
• S1, S2: About principal axes

Distances to Extreme Fibres

• Top/Bottom and Right/Left: Required for section modulus calculations

Radius of Gyration

• ry, rz: About geometric Y and Z axes
• rx: Polar axis
• r1, r2: About principal axes
• r3: Polar radius about principal axes

Shear Area

• Ay, Az: Effective shear areas (geometric axes)
• A1, A2: Shear areas in principal coordinates

Torsional and Warping Properties

• J (Torsional Constant): Resistance to pure torsion
• Cw (Warping Constant): Resistance to warping deformation

Key Benefits

• Free and accessible: No login or software installation needed
• Instant results: Output appears immediately after input
• Comprehensive: Includes advanced properties like torsion, warping, and centroid location
• Versatile: Suitable for a wide range of shapes and applications
• Accurate: Based on standard engineering formulas and practices

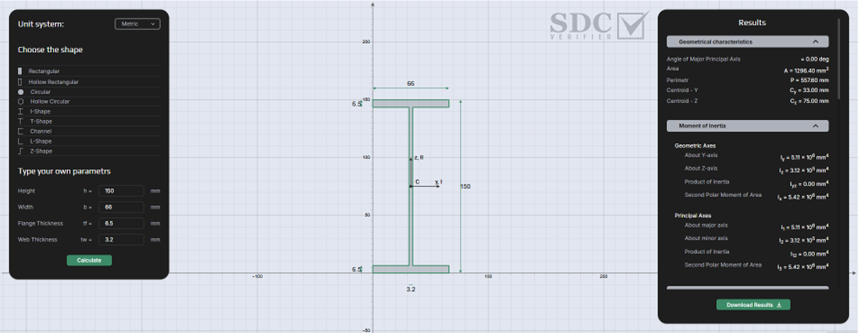

Curious how it works? Let’s walk through a real example calculating the I-beam shape in SDC Verifier’s Moment of Inertia Calculator.

Input dimensions:

• Height (h): 150 mm
• Width (b): 66 mm
• Flange Thickness (tf): 6.5 mm
• Web Thickness (tw): 3.2 mm

Now, let’s see the results!

Results:

Geometrical Characteristics:

• Angle of Major Principal Axis = 0.00 deg

• Area A = 1296.40 mm2

• Perimetr P = 557.60 mm

• Centroid – Y Cy = 33.00 mm

• Centroid – Z Cz = 75.00 mm

Moment of Inertia:

• Geometric Axes

About Y-axis Iy = 5.11 × 106 mm4

About Z-axis Iz = 3.12 × 105 mm4

Product of Inertia Iyz = 0.00 mm4

Second Polar Moment of Area Ix = 5.42 × 106 mm4

• Principal Axes

About major axis I1 = 5.11 × 106 mm4

About minor axis I2 = 3.12 × 105 mm4

Product of Inertia I12 = 0.00 mm4

Second Polar Moment of Area I3 = 5.42 × 106 mm4

Elastic Section Modulus:

• Geometric Axes

About Y-axis Zy = 6.81 × 104 mm3

About Z-axis Zz = 9449.34 mm3

• Principal Axes

About major axis Z1 = 6.81 × 104 mm3

About minor axis Z2 = 9449.34 mm3

Plastic Section Modulus:

• Geometric Axes

About Y-axis Sy = 7.66 × 104 mm3

About Z-axis Sz = 1.45 × 104 mm3

• Principal Axes

About major axis S1 = 7.66 × 104 mm3

About minor axis S2 = 1.45 × 104 mm3

Distance from Centroid to Extreme Fibers:

• Geometric Axes

Distance to Top Fibre = 75.00 mm

Distance to Bottom Fibre = 75.00 mm

Distance to Right Fibre = 33.00 mm

Distance to Left Fibre = 33.00 mm

• Principal Axes

Distance to Top Fibre = 75.00 mm

Distance to Bottom Fibre = 75.00 mm

Distance to Right Fibre = 33.00 mm

Distance to Left Fibre = 33.00 mm

Radius of Gyration:

• Geometric Axes

About Y-axis ry = 62.76 mm

About Z-axis rz = 15.51 mm

Polar rx = 64.64 mm

• Principal Axes

About major axis r1 = 62.76 mm

About minor axis r2 = 15.51 mm

Polar r3 = 64.64 mm

Shear Area:

• Geometric Axes

In Y-axis Ay = 715.00 mm2

In Z-axis Az = 480.00 mm2

• Principal Axes

In major axis A1 = 715.00 mm2

In minor axis A2 = 480.00 mm2

Torsional and Warping Properties:

• Torsional Constant J = 1.37 × 104 mm4
• Warping Constant Cw = 1.60 × 109 mm6

Engineers regularly work with cross-section properties like area (A), moment of inertia (I), and section modulus (Z). These cover the basics — bending and strength — but when it comes to real-world applications in offshore, civil, or mechanical engineering, they don’t go far enough. More advanced properties are often critical.

That’s where the polar moment of inertia, torsional constant, warping constant, and shear areas come in. Unfortunately, many online calculators and even some commercial tools skip these entirely — leaving engineers with incomplete data for torsion, warping, and shear stress calculations.

Why These Properties Matter:

• Polar Moment of Inertia (J or Ip): Not to be confused with the torsional constant or the mass moment of inertia, this area-based value describes a section’s resistance to pure torsion — but only for circular or solid sections. It’s critical in the design of drive shafts, wind turbine towers, or any structure subject to uniform twisting.

• Torsional Constant (J or It): This is not the same as the polar moment of inertia. For non-circular or open sections, torsion resistance involves non-uniform deformation that the polar moment doesn’t capture. The torsional constant accounts for this, making it essential for sections like I-beams and channels — commonly used in civil and offshore structures.

• Warping Constant (Cw): Warping occurs in thin-walled open sections under torsion — leading to additional stresses not captured by standard torsional analysis. The warping constant is especially relevant for these types of profiles and is often neglected in simple tools. It’s a key factor in offshore jackets, bridges, and tall vertical structures, where ignoring torsional warping can lead to premature failure.

• Shear Area (Ay, Az): Real-world materials don’t shear uniformly across their entire cross-section. Effective shear areas are used to calculate realistic shear stresses, which are vital in fatigue checks and when verifying against standards like Eurocode 3 or API.

SDC Verifier Goes Further

Unlike basic tools that stop at Iy, Iz, and Z, the Free Moment of Inertia Calculator by SDC Verifier provides all these advanced properties — including J, Cw, and shear areas — across a wide range of standard shapes. Whether you’re verifying a welded beam for warping stress or sizing a shaft for offshore torque loading, these values are not optional — they’re essential.

By including these advanced parameters, SDC Verifier not only ensures compliance with modern standards but also supports more accurate and reliable engineering decisions — across industries.

Calculating moment of inertia doesn’t have to be time-consuming or tied to CAD. Whether you’re pre-sizing a beam, comparing torsional resistance, or validating hand calculations, using a dedicated calculator can save hours—especially during early-stage design or quick checks.

Skip the manual formulas, slow spreadsheets, or CAD overhead. Try a faster, engineer-focused approach.
