Structure analysis with SDC Verifier

29 Jan 2024 v2023
  • SDC Verifier

SDC Verifier is a powerful all-in-one software solution for structural design, FEA analysis, and verification according to standards. In this tutorial, we covered structural analysis capabilities of SDC Verifier wit Simcenter Nastran solver.

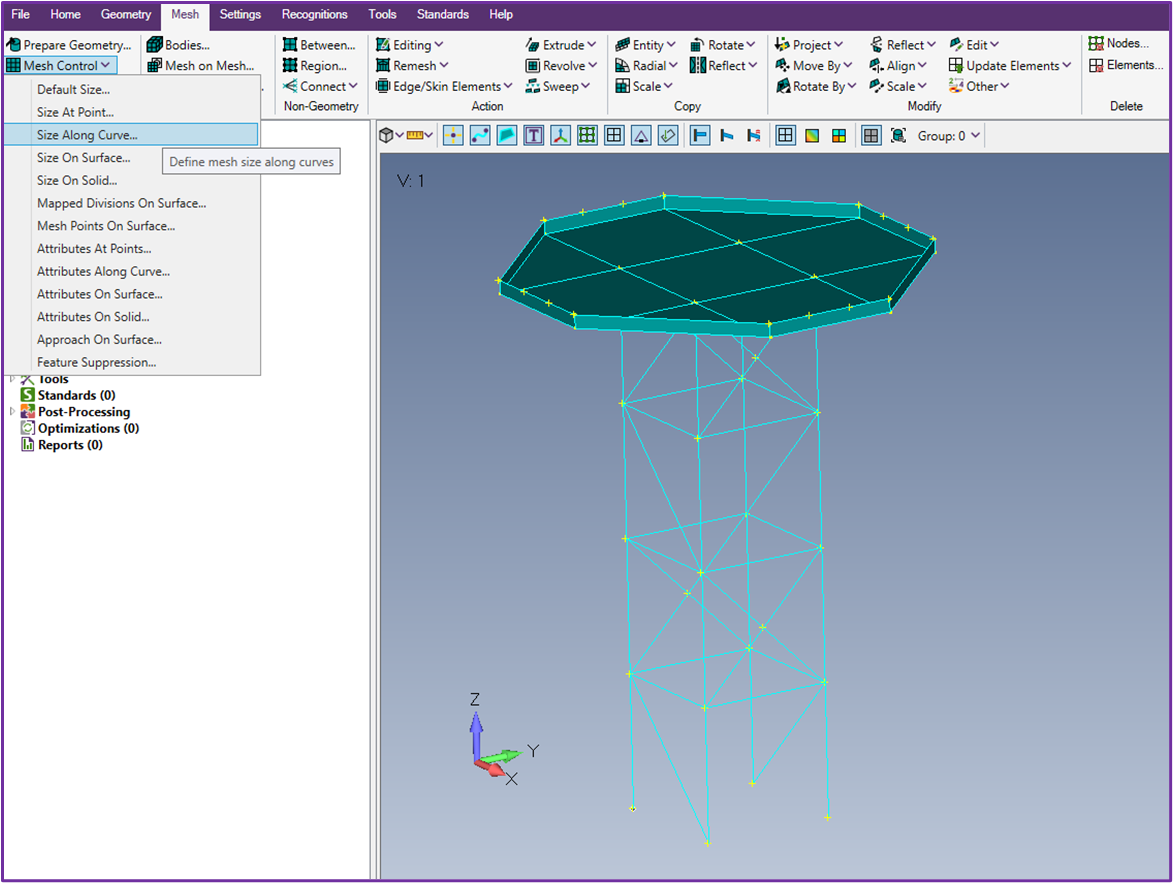

sdc structual analysis

This step-by-step tutorial is designed to get you started with the main SDC Verifier features.
You will learn how to:

  • Create boundary conditions and constraints;
  • Apply FEM Loads;
  • Create Individual Loads, Load Sets and Load Groups;
  • Run the FEA Analysis;
  • Preview the Plot

Download Structure analysis with SDC Verifier Tutorial

SDC VersionStep-by-step Tutorial
2023Analysis of the Structure with SDC Verifier 2023 R2

In order to complete this tutorial, you must have a version of SDC Verifier not lower than the version indicated in the table, as well as an activated license (Trial or other commercial or educational license)

Watch the recording of the online webinar Structural Checks according to Standards with SDC Verifier, which is the basis for this tutorial
