Example E.8 WT compression member with slender elements

The results are generated with SDC Verifier 3.6 and calculated with FEMAP v11.0.0

Task:

Select an ASTM A992 WT-shape compression member with a length of 20 ft to support a dead load of 6 kips and live load of 18 kips in axial compression. The ends are pinned.

Solution:

From AISC Manual Table 2-4, the material properties are as follows:

ASTM A992

Fy = 50 ksi

Fu = 65 ksi

From Chapter 2 of ASCE/SEI 7, the required compressive strength is:

E7 1

Table Solution

From AISC Specification Commentary Figure C-A-7.1, for a pinned-pinned condition, k = 1.0.

Therefore, (KL)x = (KL)y = 20.0 ft.

Select the lightest member from AISC Manual Table 4-7 with sufficient available strength about both the x-xaxis (upper portion of the table) and the y-y axis (lower portion of the table) to support the required strength.

Try a WT7×15.

The available strength in axial compression from AISC Manual Table 4-7 is:

E7 2

The available strength can be easily determined by using the tables of the AISC Manual. Available strength values can be verified by hand calculations, as follows

Calculation Solution

From AISC Manual Table 1-8, the geometric properties are as follows:

WT7×15.

Ag = 4.42 in2.

rx = 2.07 in.

ry = 1.49 in.

J = 0.190 in4.

Qs = 0.611

γ = 1.58 in.

x = 19.0 in4.

y = 9.79 in4.

d = 6.92 in.

tw = 0.270 in.

bf = 6.73 in.

tf = 0.385 in.

Stem Slenderness Check

E8 stem

Determine the stem limiting slenderness ratio, Λr, from AISC Specification Table B4.1a Case 4.

E7 stem ratio 1

Λ > Λr therefore, the web is slender

Flange Slenderness Check

E8 flange

Determine the flange limiting slenderness ratio, Λr, from AISC Specification Table B4.1a Case 1.

E8 flange ratio

Λ < Λr therefore, the flange is not slender

Because this WT×15 has a slender web, AISC Specification Section E7 is applicable. The nominal compressive strength, Pn shall be determined based on the limit states of flexural, torsional and flexural-torsional buckling.

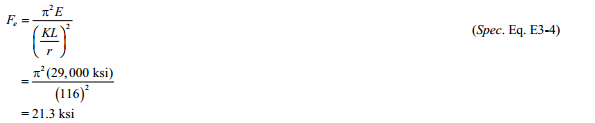

x-x Axis Critical Elastic Flexural Buckling Stress

E8 critical

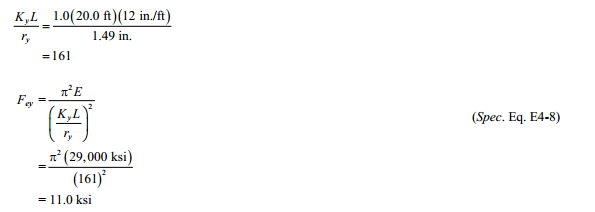

Critical Elastic Torsional and Flexural-Torsional Buckling Stress

E8 Fcry

Torsional Parameters

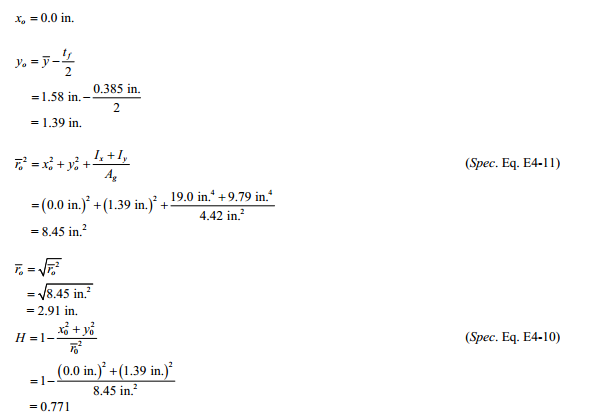

The shear center for a T-shaped section is located on the axis of symmetry at the mid-depth of the flange

E8 T shape

E8 T shape1

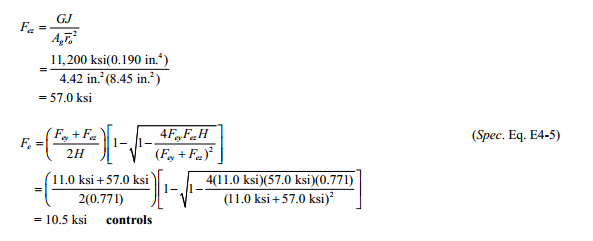

Omit term with Cw per User Note at end of AISC Specification Section E4.

E8 T shape2

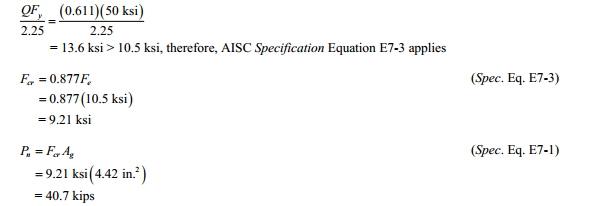

Check limit for the applicable equation.

E8 T shape3

From AISC Specification Section E1, the available compressive strength is:

E8 lrfd

Example from AISC Design Examples

Material summaryE8 material

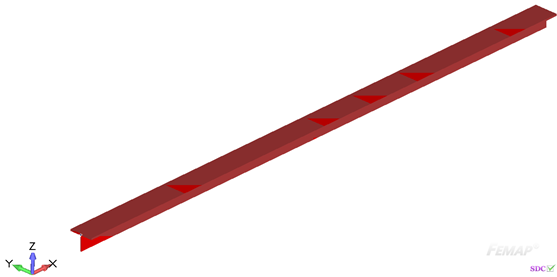

E7 plot 1

Properties Summary

1..WT7×15

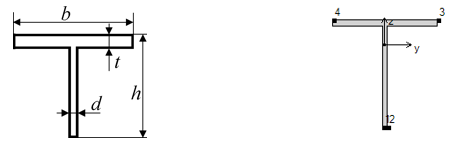

E7 wt7x34 plot 1

Geometry Property Value
Height 6.92
Width 6.73
h 6.92
b 6.73
d 0.27
t 0.39

FEM Loads and Constraint

1..Dead load 6 kips

E8 deadload

2..Live load 18 kips

E8 liveload

Constraint

1.. Pinned

E8 constraint

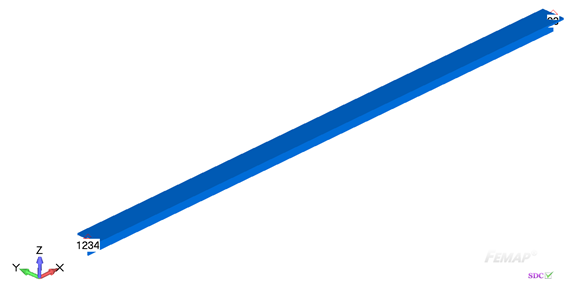

E7 plot1 1

Check 1..ANSI / AISC LRFD 360-10

Beam Characteristics

All (LS1, All Entities)

E8 beam

Axial check

All (LS1, All Entities)

From AISC Specification Section E1, the available compressive strength is:

E8 kltable marked

Comparing results of calculation in SDC Verifier and in Example E.8 we can see that values completely match. The available compressive strength is 38.4 kips.
