Materials Plot  FREE tool for Femap!

Displays plate elements thicknesses using special plot with labels.

Make sure that Microsoft .NET Framework 4.5 is installed. The tool is tested on Femap v11 and higher

Download Materials Plot

Why do we think it is handy?

Active Model Detection

Materials plot tool works with an active model. It will automatically checks if active model is changed and updates a list of groups.

Note:
Femap should be started before running Materials plot tool.

Note:
Update model option should be used only if user already did a plot on the model and later has updated the model (model is not read each time when Plot button is pressed for performance reason)

Note:
Selection – full model or group
If new group was added to the model press update button

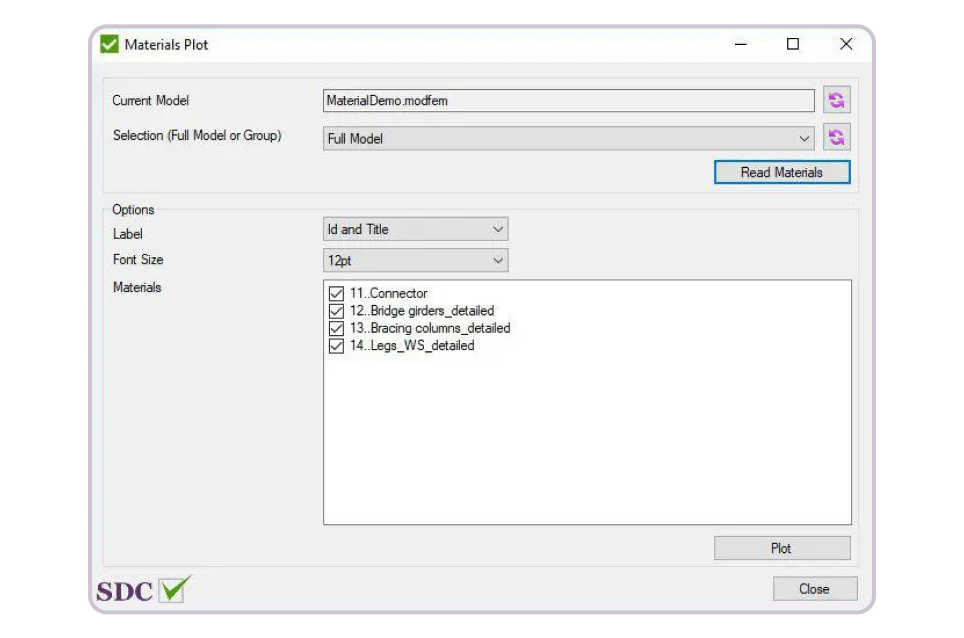

Interface for Plot Customization

For Label the following options are available:

Ids
Titles
Font Size – controls size of the labels. Minimum 8pt, maximum – 32pt;
Materials – a list of materials from the selection.
