API ISO Norsok Tutorial

A tubular offshore steel structure is verified according to the API RP-2A LRFD, ISO19902 and Norsok N004 standards. The buckling length is recognized automatically.

In this tutorial, API 2A RP Beam Design Checks are reviewed in details.

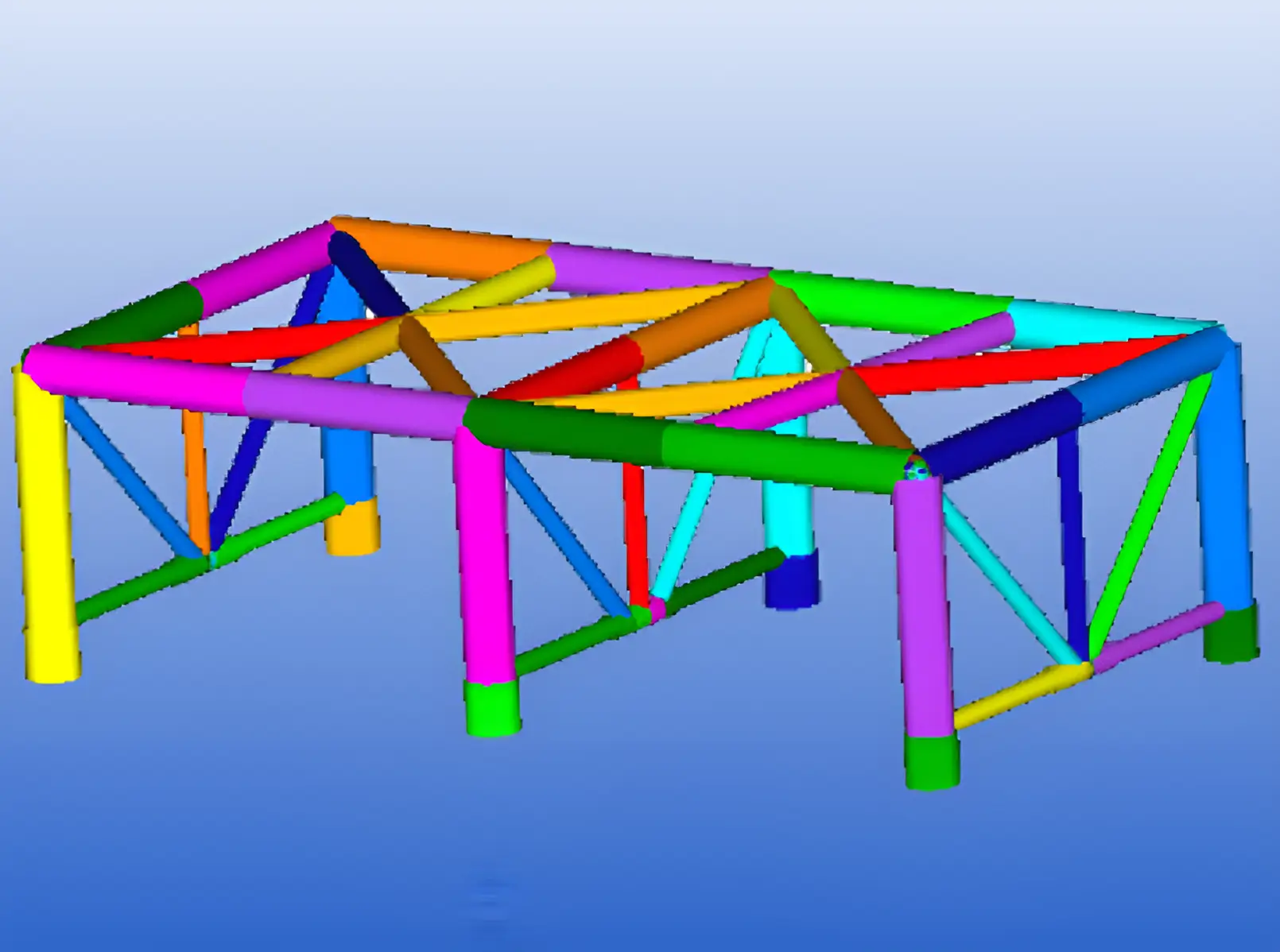

A beam model of a steel frame has been used as a start FEM model.
Beam member finder was used to recognize beam member length in 3 directions.
The report was generated with the help of report designer.

Download API, ISO, Norsok Tutorial for SDC Verifier

SDC Verifier Version	Tutorial for
SDC Verifier Version	Ansys	Femap	Simcenter 3D
2023	API, ISO, Norsok Member Checks Tutorial for Ansys and SDC Verifier 2023	API, ISO, Norsok Member Checks Tutorial for Femap and SDC Verifier 2023	API, ISO, Norsok Member Checks Tutorial for Simcenter 3D and SDC Verifier 2023
2020	API, ISO, Norsok Member Checks Tutorial for Ansys and SDC Verifier 2020	API, ISO, Norsok Member Checks Tutorial for Femap and SDC Verifier 2020	API, ISO, Norsok Member Checks Tutorial for Simcenter 3D and SDC Verifier2020
5.3	API, ISO, Norsok Member Checks Tutorial for Ansys and SDC Verifier 5.3	API, ISO, Norsok Member Checks Tutorial for Femap and SDC Verifier 5.3	API, ISO, Norsok Member Checks Tutorial for Simcenter 3D and SDC Verifier 5.3
