Recognition tools are used for automatic detection of different structural elements (joints, connections, beams, plates, welds) and further use them in checks according to industry rules and regulations or custom checks.
Construction safety is a crucial requirement for engineers’ tasks. To avoid collapse, each construction must be verified according to global and local industry standards. Performing checking according to standards is quite a complicated procedure. Besides the massive amount of rules to calculate (which depend on different shapes, materials, and other criteria), additional structure characteristics should be defined:
Manual defining these characteristics is possible only for small models, but still is time-consuming. For big models like vessels, it is impossible, for example, in ship models where 100-200 thousand plates are checked using specific standard.
We believe that characteristics detection routines can be automated. For that purpose, SDC Verifier implements a set of Recognition Tools.
Joints Finder is a powerful tool that helps to find and automatically detect different types of joints (1D, 2DY, 2DZ, 3D, etc.) that are used to find beam member lengths and connections for Joint Check. It is used by Beam Member Finder tool to recognize beam member length in 2 directions and by Joint Checks.
There following types of Joints are recognized automatically:

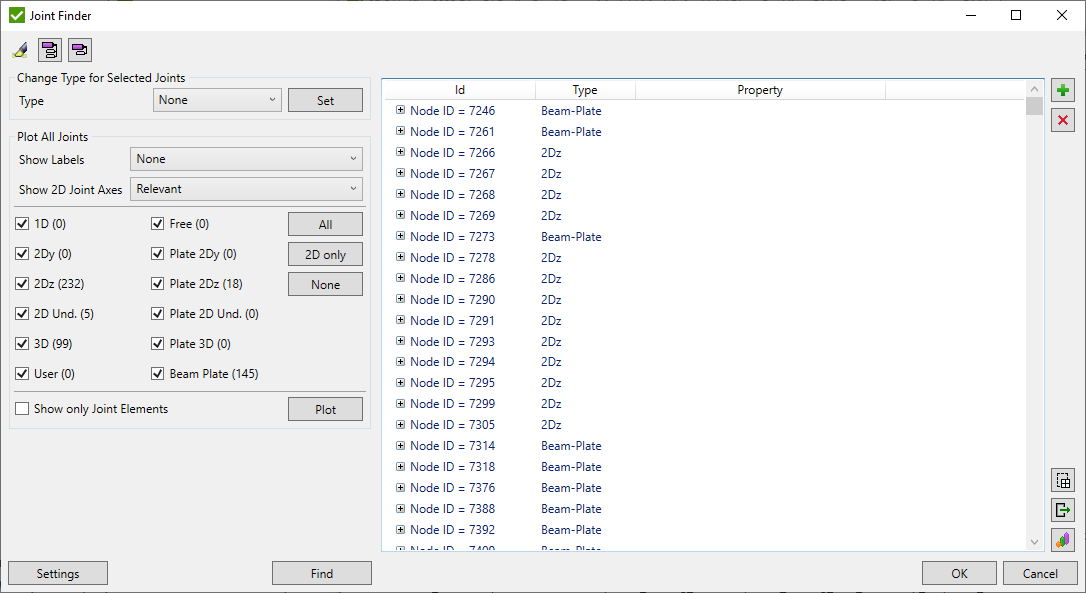

Joints Finder Tool Interface
You have three options to automatically detect all joints:
Joints Finder Tool Video
Before using recognized joints in member or connection checks, review their types and locations. Incorrect joint classification can affect member segmentation and the parameters used in subsequent verification.
Since SDC Verifier 2026 R2, Joint Finder data can be added to Report Designer. Recognized joints are then documented in the same calculation report as the checks that use them.
Connection Finder automatically detects connections and their dimensions in the FE model. It is based on Joint Finder: each connection is the set of elements connected at a joint node. These elements are split into a chord and braces:

Connection Finder recognizes four connection types:
Multiplane (3D) connections are split into plane (2D) connections. When braces sit on both sides of the chord, they are listed as Upper and Lower.
Reviewing connections
For each connection, the table shows the connection type, its chord and braces, and their cross-section dimensions. Before applying connection checks, verify the recognized chord and brace geometry, cross-section dimensions, and connection grouping. Pay particular attention to multiplane and overlapping connections, where recognition settings can affect how braces are grouped.
You can:

The Brace Stress Tool calculates axial, in-plane bending and out-of-plane bending stresses in braces from the forces at the joint and the section properties. Since 2026 R2, it also calculates elastic and plastic buckling stresses. In SDC Verifier 2026 R2, the Brace Stress Tool was extended to calculate elastic and plastic buckling stresses. Supported API, ISO, and NORSOK connection checks were updated to support plastic buckling stress values.
For background, see how to perform a tubular joint check and Connection Finder tutorial on our YouTube channel.
Beam Member Finder automatically recognizes beam members and determines their lengths in the local Y, Z, and torsional directions.

Beam Member Finder uses recognized joints to identify beam members and their sub-members. Member lengths are determined from the recognized joint locations rather than simply from individual element lengths or mesh density.
The tool recognizes three length directions:
Beam Member Finder tool interface
If a beam member contains intermediate joints, it can be divided into sub-members. The Break Joint Options control which types of joints split members in the Y, Z, custom, and torsional directions. Engineers can review the recognized segmentation, add or remove break joints, and manually adjust member or sub-member lengths when necessary.
Review recognized joints, member segmentation, and local element orientations before using the results in structural verification.
By default, plate joints split members in the Y and Z directions, but not in torsion. The effective length factor may be set to 0.01 for plate-supported members. This is a default assumption, not proof of actual restraint, so engineers should verify the boundary conditions and effective-length assumptions.
Filtering by length, selection, and element orientation helps identify members requiring review. Inconsistent local Y-axis orientations can also affect the Cb factor used by the Moment Ratio Tool. Correct element orientation in the FEA model where necessary.
Beam Member Finder lets engineers edit member lengths, length factors, and Cm Type, individually or in groups using filters. Cm Type is used to calculate the Cm moment reduction factors specified in API RP 2A, ISO 19902, and NORSOK N-004 member checks..
Recognized member data supports the following verification checks:
Watch: Tutorial: Beam Member Finder in SDC for Ansys
For more information about joint recognition and its settings, see the Beam Member Finder documentation.
Beam Section Finder helps to group line elements (1D) by planes. It is very similar to Panel Finder, but sections are recognized as beams/bars instead of plates. It is used to improve user experience in the selection process with selectors.

Plate buckling checks calculations are based on plate dimensions from the Panel Finder tool. It works on any plated model and is especially useful for ship hulls and offshore structures.
Panel Finder organizes the model in four levels:
Automatic Plates Detection in FEA Model
Engineers can visualize recognized sections, panels, and plates, including inclined and curved regions. When automatic recognition does not reflect the intended geometry, plates can be added, removed, merged, or modified manually. Plate dimensions should be reviewed before they are used in buckling calculations.

Panel Finder Tool Interface
Panel Finder Video Tutorial
The applicable buckling check depends on the plate geometry and the scope of the selected standard. Recognizing a plate or curved panel does not automatically establish that every listed check is applicable to it.
DNV:
ABS:
Bureau Veritas:
Weld fatigue checks and weld strength checks need two things FE results don’t provide: where the welds are, and the stresses in each weld’s own directions. Normal and shear stresses parallel and perpendicular to a weld have different allowable fatigue stresses, so element stresses have to be rotated into weld axes first.
Weld Finder automatically recognizes welds and prepares the data required for fatigue and weld strength verification. For fatigue calculations, elemental stresses are transformed into weld directions. For weld strength checks, stresses are calculated from nodal forces and moments using the specified weld dimensions.
Automatic Weld Detection in FEA Model
During recognition, Weld Finder automatically classifies weld parts as welded or non-welded based on model geometry and element properties. This classification should be reviewed against the intended weld design before verification.
After recognition, Weld Finder checks the welded/non-welded part classification and identifies connections that may require manual review. This includes welds where all parts are classified as welded or all as non-welded. Like Joint Finder, it offers Remove All, Keep only Modified and Keep All Existing when you rerun it.
When an element belongs to multiple welds, such as at weld intersections, the stress orientation is based on the last weld in the Weld Finder list. Engineers should review these regions before using the calculated stresses for fatigue verification.

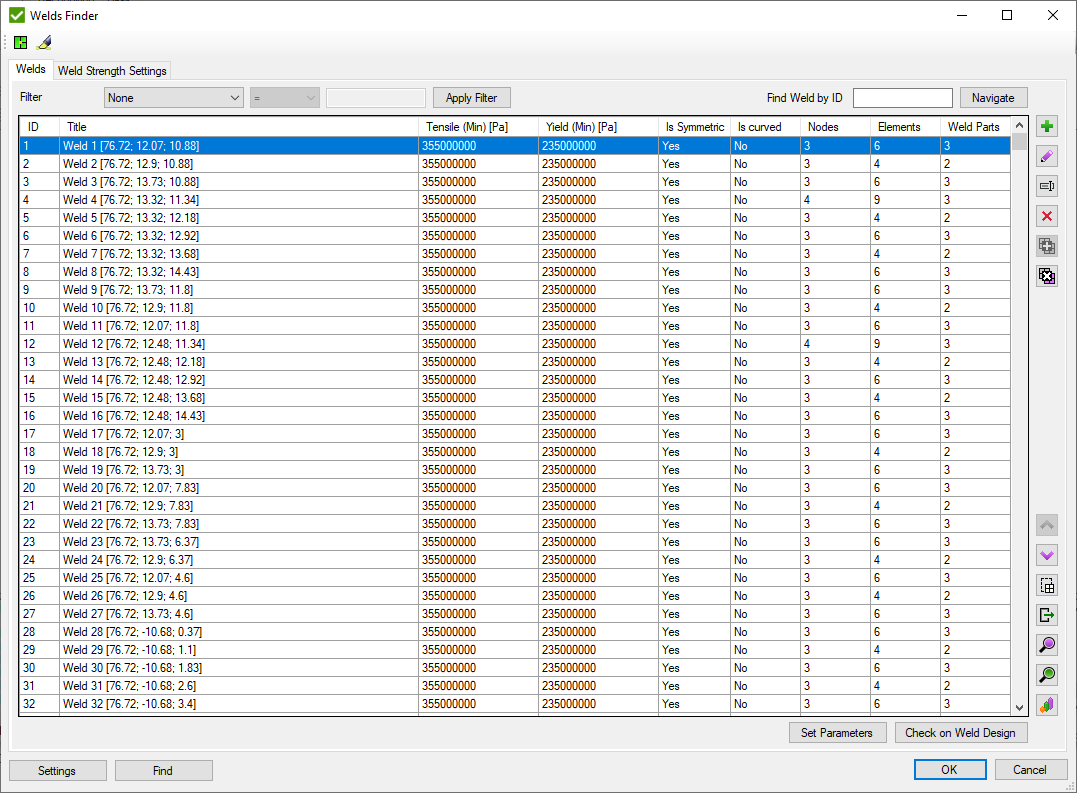

Weld Finder Tool Interface
Unlike fatigue checks based on elemental stresses, weld strength verification requires the weld type and dimensions to be defined. These properties are used to calculate weld stresses from nodal forces and moments. Weld Finder supports the following four weld types:
For hot spot fatigue assessment, engineers can enable Hot Spot Stress calculations for selected weld parts and define reference point locations. The calculation is disabled by default and must be configured before the results can be used for fatigue verification.:
Weld Finder Video Tutorial
Fatigue:
Weld strength:
