Finite Element Method (FEM) in structural analysis is not just a way to generate stress plots. It is the numerical method engineers use to predict how a structure responds to loads, constraints, temperature effects, vibration, and stability-related actions by breaking the structure into smaller elements and solving the governing equations across the model.
That sounds simple. The hard part is not solving the equations. The hard part is building a model that reflects how the real structure actually works.
This is where many generic FEM articles go off track. They explain the math, mention meshes and nodes, and stop there. Structural engineers need something else: how FEM is used in real structural work, what modeling choices matter most, where results become misleading, and how analysis turns into engineering verification.
If you are looking for the broader introduction to simulation, start withWhat Is Finite Element Analysis (FEA)?. This article is narrower on purpose. It focuses specifically onFEM in structural analysis — the workflow, the judgment calls, and the checks that separate a useful model from polished nonsense.
FEM vs FEA in structural engineering
These terms are often used interchangeably, but they are not identical.
FEMis the numerical method.FEAis the engineering analysis workflow built on that method.
In practice, FEM is the solver logic behind the model. FEA is everything around it: geometry preparation, material definition, load application, element selection, meshing, solving, post-processing, and validation.
That distinction matters because a model can be solved correctly and still be wrong from an engineering standpoint. A contour plot does not prove anything by itself. Structural work still requires engineers to answer more practical questions:
Does the load path make sense?
Are displacements acceptable?
Are stress peaks real or artificial?
Is the structure governed by strength, buckling, fatigue, or stiffness?
Do the results support code-based checks and reporting?
That is also the gap between generic FEA software output and a structural verification workflow.
Why FEM matters in structural analysis
Hand calculations are still useful. They are fast, transparent, and essential for sanity checks. But they do not scale well once the structure becomes geometrically complex, has multiple load cases, includes shell behavior, welded connections, contact, local stiffening, or nonlinear response.
FEM matters because it lets engineers study structural behavior at both global and local levels in one model. It helps answer questions that are difficult or impossible to resolve with closed-form methods alone.
In structural engineering, FEM is routinely used for:
strength and stiffness assessments, plate and shell behavior, support and connection studies, buckling analysis, fatigue evaluation, thermal stress problems, vibration and modal studies, and nonlinear load cases involving contact or large deformation.
The benefit is not just complexity handling. It is visibility. FEM helps engineers see how a structure carries load, where the response concentrates, and which failure mode is likely to govern.
How FEM works in structural analysis
At a high level, the workflow is familiar. In practice, each step contains decisions that can move results by a lot.
1. Structural idealization
Before meshing starts, the structure has to be simplified into a model that captures the right behavior without adding useless detail.
A real structure may be modeled with beam elements, shell elements, solid elements, or a combination of all three. The right choice depends on the structural question.
If you are assessing a slender frame, beam elements may be enough. If you are studying plate bending, shell behavior, or stiffened panels, shell elements usually make more sense. If the goal is to understand a local 3D stress field around a complex connection or contact region, solid elements may be required.
This step matters more than most people admit. A poor idealization cannot be fixed later by refining the mesh.
Structural FEM only works when the stiffness and resistance assumptions match the real structure closely enough for the problem being solved.
For many static problems, a linear-elastic material model is enough. For others, it is not. Depending on the case, engineers may need to consider plasticity, nonlinear stiffness, temperature dependence, orthotropy, or specific section properties.
The same logic applies to structural properties. Thickness, offsets, beam sections, local coordinate systems, and property assignments all affect the response.
This is why property definition deserves the same rigor as geometry or meshing.Structural Properties in Finite Element Analysisis worth reviewing if the model includes multiple element types or complex property zones.
3. Loads, supports, and boundary conditions
This is where many structural models fail.
A clean mesh and a fast solver do not rescue unrealistic supports. If the structure is fixed where it should rotate, tied where it should slip, or loaded in a way that does not reflect reality, the result will be wrong no matter how good the software is.
In structural analysis, boundary conditions include more than just restraints. They also include how loads enter the model, how components interact, and whether symmetry or contact assumptions are legitimate.
Supports should reflect the real restraint conditions. Loads should reflect the real distribution and direction. Contacts should reflect whether the connection transfers compression only, separates, slides, or remains bonded.
Once the structural concept is defined, the model is divided into finite elements connected by nodes. This mesh turns the continuous structure into a system the solver can handle.
But finer is not always better.
A useful mesh is one that is fine where the response changes rapidly, coarse where the response is smooth, and appropriate for the element formulation being used. Engineers usually refine around holes, brackets, weld-adjacent zones, load introduction regions, supports, openings, and geometry transitions—not everywhere equally.
Poorly shaped elements, abrupt size changes, or uncontrolled refinement can distort stiffness and create noisy results. The mesh has to be good enough for the structural question, not just dense enough to look serious.

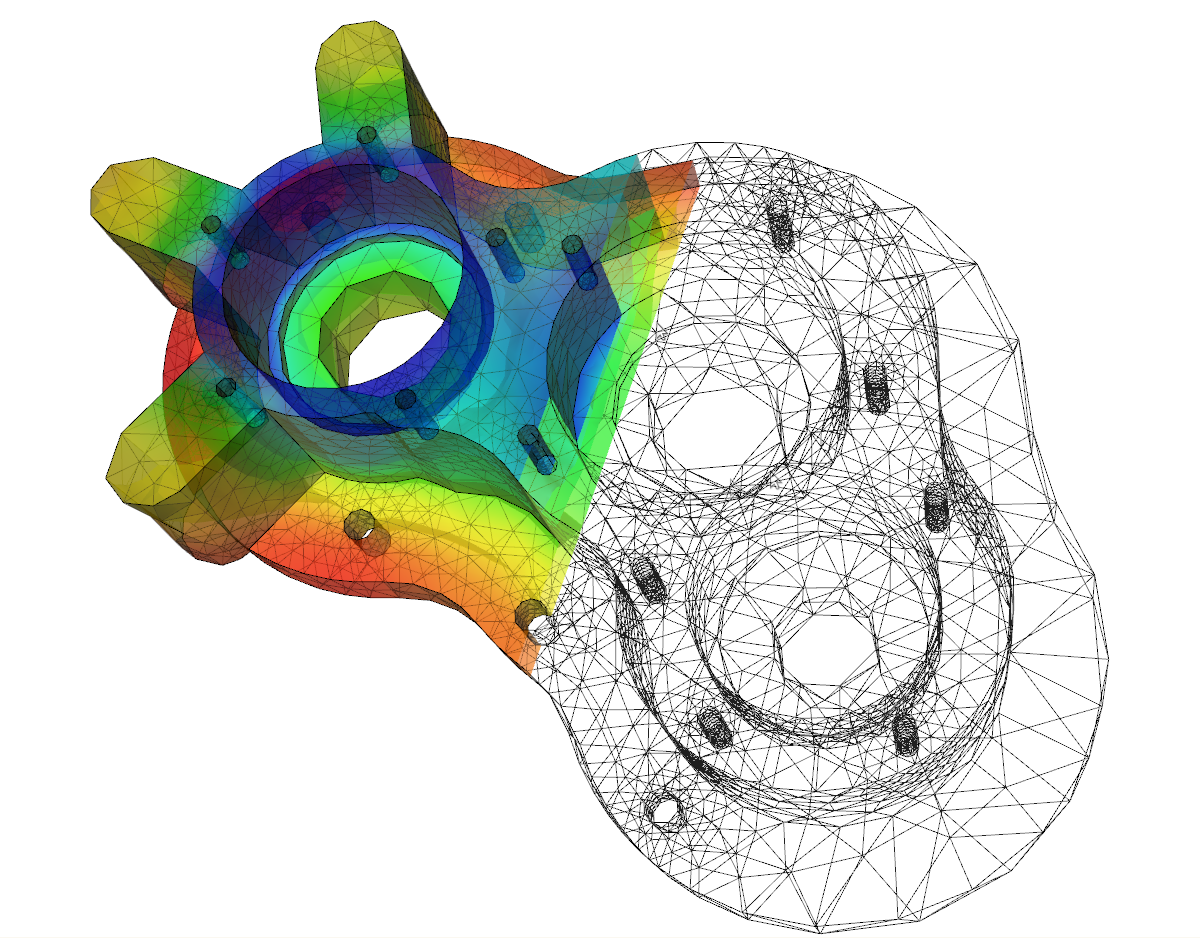

Example of a structural FEM model: the same component is shown as a finite element mesh and as a contour plot of the calculated response. Image: jousefmurad.com
5. Solving the structural problem
The solver assembles the element equations into a global system and calculates the unknowns—typically displacements first, then derived quantities such as strain, stress, reactions, and internal forces.
This can be done through different analysis types depending on the problem:
linear static, nonlinear static, eigenvalue buckling, modal, harmonic, transient dynamic, or fatigue-oriented workflows.
Choosing the wrong analysis type can be just as damaging as choosing the wrong element type. A perfectly meshed linear model is still a bad model if the real behavior is dominated by contact, instability, or yielding.
6. Post-processing and engineering interpretation
This is the step most generic explainers oversimplify.
A solved model does not equal a finished engineering conclusion. Engineers still need to interpret the response correctly.
That means deciding which stress measure matters, which peak values are physically meaningful, whether load transfer looks realistic, whether the result has converged, and whether the model actually answers the original design question.
In structural work, the post-processing step often drives the real decision: is the design acceptable, over-stressed, too flexible, at risk of buckling, or vulnerable to fatigue?
Beam, shell, and solid elements: when to use what
One of the most practical FEM decisions in structural analysis is the choice of element type.
Thickness and offsets matter at connections. Bending and membrane behaviour must both be represented correctly.
Solid (3D)
Complex joints, thick-walled sections, load introduction points, contact zones
Most expensive. Use only where beam/shell assumptions would hide the real stress field.
Spring / Gap
Bolted connections, soil-structure interaction, lifting eyes with clearance
Contact nonlinearity if gap can open/close. Direction and stiffness must be physically justified.
Beam elements
Beam elements are efficient and powerful when the structure is dominated by member behavior—axial force, shear, bending, and torsion. They are often the best option for frames, trusses, support systems, lifting structures, and many offshore or civil structural layouts.
They are fast, transparent, and easy to use in member-check workflows. But they do not capture local plate bending, weld detail behavior, or 3D stress fields well.
Shell and plate elements
Shell elements are usually the best compromise for thin-walled structural parts. They are widely used for plates, shells, stiffened panels, tanks, casings, support plates, and other structures where through-thickness stress is not the main concern but surface and bending behavior are.
For many real structural models, shell elements are where engineering efficiency lives.
Solid elements
Solid elements are useful when local 3D effects matter: thick regions, load introduction points, contact zones, local connection geometry, fillets, cast parts, and other zones where simplified idealization would hide the real stress field.
They are powerful, but expensive. In structural work, they should be used where they earn their keep.
Linear vs nonlinear FEM in structural work
Most structural FEM starts with linear assumptions. Often that is reasonable. Sometimes it is dangerously optimistic.
Linear FEM
Linear FEM assumes small deformations, elastic material behavior, fixed stiffness, and no important change in boundary condition during loading.
It is fast and useful for many routine checks, early-stage design, and baseline comparison studies.
Nonlinear FEM
Nonlinear FEM is needed when the structure does not behave that politely.
That includes three distinct categories, which can appear alone or together:
Material nonlinearity— yielding, plasticity, creep. Required for ultimate limit state analysis, plastic collapse assessment, and post-yield ductility checks.
Geometric nonlinearity— large displacements or rotations that change the load path (P-delta effects, snap-through buckling). Required for slender structures under compressive loads, or any case where the deformed shape differs meaningfully from the original.
Boundary nonlinearity— contact that opens and closes, friction, bolt pre-tension. Required for connection modelling, lifting analysis, and soil-structure interaction.
A practical trigger: if refining from linear to nonlinear changes your peak stress or governing utilisation by more than 10–15%, the nonlinear effects are significant enough to govern the design.
If the structural question involves collapse, geometric nonlinearity, plastic redistribution, or real contact behavior, a linear model may look neat while being wrong in the only way that matters.
How to tell whether structural FEM results are trustworthy
This is the central question.
Start with the deformed shape
Before reading any stress plot, look at the deformation. If the structure bends, twists, or moves in a way that makes no physical sense, stop there. Something is wrong in the model.
Check equilibrium and reactions
Do the reactions balance the applied loads? Are the support forces plausible? If not, the problem may be in the constraints, the load application, or the element connectivity.
Run convergence checks
Important results should stabilize as the mesh is refined. This does not mean every local stress value will stop moving. It means the engineering quantities that matter—displacement, membrane stress away from singularities, internal forces, utilization, buckling factors, or fatigue-driving values—should become stable enough for decision-making.
Watch for singularities
Sharp corners, point loads, idealized supports, and abrupt restraints can produce theoretical stress spikes that are useful mathematically and useless for design.
This is why experienced analysts do not design to the reddest pixel on the screen.
Compare with hand checks
Even simple hand estimates are valuable. They help verify order of magnitude, stiffness level, support logic, and dominant load path. If the FEM result contradicts basic structural mechanics, the model needs review before the report starts writing itself.
Common FEM mistakes in structural analysis
Most structural FEM failures do not come from the solver. They come from bad assumptions that were never challenged.
The most common ones are familiar: overconstrained supports, underconstrained mechanisms, unrealistic contact assumptions, poor property assignment, wrong element type, uncontrolled mesh refinement, and blind trust in local peak stresses.
Another common mistake is stopping at analysis.
Structural engineering rarely ends with “the model solved.” Real projects usually require code-based checks, traceable reporting, and a defensible explanation of why the design passes.
Analysis is not verification
This is the point generic FEM articles usually miss.
FEM gives you the structural response. It tells you how the model behaves under the assumptions you applied. But structural work often requires something more specific: proof that members, plates, welds, or details satisfy the relevant design rules.
That is where structural verification starts.
For example, an offshore module may need member checks, plate buckling checks, and fatigue assessments under multiple standards. A solver alone gives the raw response. An engineering workflow still has to turn that response into code-based acceptance criteria, repeatable checks, and final reports.
This is exactly the workflow SDC Verifier is built around. Instead of stopping at FEA results, it helps engineers convert real FEM models into structural verification deliverables with automated checks, post-processing, and reporting.
On the product side, SDC Verifier supports structural analysis and design workflows with automated reporting, pre- and post-processing tools, and code-checking built on the actual FEM model rather than disconnected spreadsheet simplifications. See the full overview on theSDC Verifier software page.
A practical example: offshore structural verification
A good example of this analysis-to-verification bridge is offshore converter platform work.
In that kind of project, the challenge is not simply to solve one static model. Engineers need to review multiple load effects, assess member behavior, evaluate plate buckling, check fatigue-sensitive locations, and document compliance with project standards.
That is why this kind of work is a better illustration of structural FEM than the usual textbook beam. It shows the real point of the method: not just discretization, but decision-making under realistic structural demands.
Where SDC Verifier fits into a structural FEM workflow
SDC Verifier should not be positioned as “software that also does FEM.” Every serious CAE platform already says that.
Its stronger position is this:
It helps engineers work faster and more reliablyafter the FEM model exists—through model preparation, post-processing, code-based checks, and report generation tied to real finite element results.
That matters because the bottleneck in structural projects is often not the solve itself. It is everything around the solve: organizing checks, validating results, extracting the right forces and peaks, documenting assumptions, and producing reports that can survive review.
FEM in structural analysis is not difficult because the method is mysterious. It is difficult because structures are messy, assumptions matter, and the model has to represent reality closely enough for the design decision being made.
That is why strong structural FEM work is not about chasing the most complex model. It is about making the right modeling choices, validating the response, and knowing when a solved analysis is still not enough.
The useful structural workflow is not “build, solve, screenshot.” It is this:
FEM in structural analysis is the use of the finite element method to predict how a structure responds to loads, supports, temperature effects, vibration, or stability-related actions by dividing it into smaller elements and solving for structural response.
What is the difference between FEM and FEA?
FEM is the numerical method used to solve the model. FEA is the broader engineering workflow that includes model setup, load definition, meshing, solving, result interpretation, and validation.
Which element type is best for structural FEM?
There is no universal best type. Beam elements suit slender members, shell elements suit thin-walled structures, and solid elements suit local 3D stress regions, contact zones, and thick components.
Why is meshing important in structural analysis?
The mesh controls how the real structure is discretized for numerical solution. A poor mesh can distort stiffness, reduce accuracy, and produce misleading stress distributions or convergence behavior.
Is linear FEM enough for structural checks?
Sometimes. Linear FEM is often suitable for small elastic deformations and routine load cases. Nonlinear FEM is needed when yielding, contact changes, large deformation, or instability governs the response.
Does FEM prove code compliance?
No. FEM provides structural response. Code compliance still requires design-rule checks, interpretation, and documented verification against the relevant standard.
