What Are Isotropic Materials in Finite Element Analysis (FEA)?

In Finite Element Analysis (FEA), material properties significantly influence the accuracy of simulations. Engineers often use isotropic materials in FEA due to their uniform behavior in all directions. But what exactly are isotropic materials, and why are they crucial in FEA? This article explores their properties, applications, and advantages in engineering simulations.

What are Isotropic Materials in FEA?

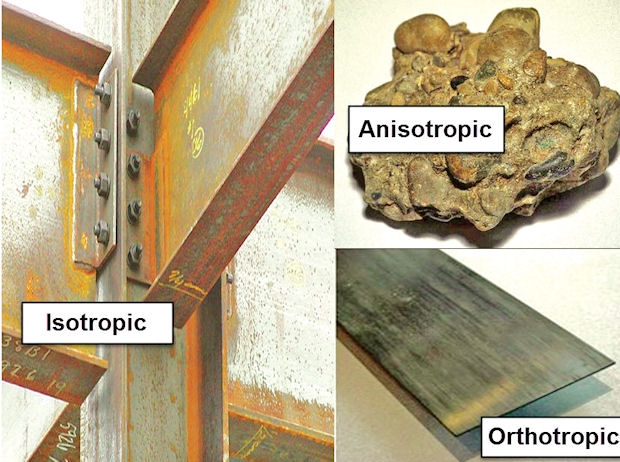

Isotropic materials in FEA are substances whose mechanical and thermal properties remain constant regardless of the direction in which they are tested. This uniformity differentiates them from anisotropic materials, which exhibit direction-dependent properties. Common examples of isotropic materials include certain metals (in their annealed state), unfilled plastics, and glass. These materials are often used in engineering applications where loading may occur in multiple directions, and it is important that the material responds similarly—such as under both tensile and compressive forces.

(source)

Properties of Materials

The defining characteristic of isotropic materials is their consistent behavior under mechanical stress. Key properties include:

• Elastic Modulus (Young’s Modulus): Quantifies the relationship between tensile or compressive stress σ (force per unit area) and axial strain ε (proportional deformation) in the linear elastic region of a material.
• Poisson’s Ratio: Describes the ratio of transverse strain to axial strain. According to the theory of isotropic linear elasticity, Poisson’s ratio can vary from 0.2 to 0.35 for an object with free surfaces and no external constraints.
• Thermal Conductivity: In isotropic materials, thermal conductivity is ideally the same in all directions. However, in practice, slight variations can occur due to factors like grain structure or manufacturing processes—especially in metals.
• Yield Strength and Ultimate Strength: Determined through stress-strain analysis, these properties are crucial for structural design.

For example, an annealed AISI 304 stainless steel demonstrates isotropic behavior and has the following properties:

• Elastic Modulus (Young’s): 200 GPa
• Poisson’s Ratio: 0.28
• Yield Strength: 230 MPa
• Ultimate Tensile Strength (UTS): 580 MPa
• Shear Modulus: 77 GPa
• Shear Strength: 400 MPa
• Fatigue Strength: 210 MPa
• Brinell Hardness: 170
• Rockwell B Hardness: 79
• Elongation at Break: 43%
• Reduction in Area: 53%

Importance of Isotropic Materials in Finite Element Analysis (FEA)

FEA is a computational method used to simulate the behavior of materials under different loading conditions. The accuracy of FEA simulations heavily depends on correctly defining material properties, boundary conditions, and applied loads before the meshing. Isotropic materials play a significant role in FEA for several reasons:

1. Predictable and Consistent Behavior: Since their properties remain the same in all directions, isotropic materials simplify the modeling process and reduce the risk of errors due to directional variability.
2. Widely Available Material Data: Many engineering materials, such as steel and aluminum, are isotropic, and their stress-strain relationships are well-documented, making them ideal for FEA simulations.
3. Simplified Computations: Unlike anisotropic materials, which require complex directional property definitions, isotropic materials can be modeled using fewer parameters, reducing computational load and processing time.
4. Reliable Stress-Strain Analysis: The linear elasticity assumption holds well for most isotropic materials in structural simulations, allowing engineers to accurately predict deformations, stresses, and potential failure points.

Application of Isotropic Materials in FEA Software

Structural analysis software like SDC Verifier supports only isotropic materials. However, if you use SDC extensions, like SDC for Ansys, they also provide extensive functionality for analyzing anisotropic and composite materials.

Material properties, which are essential for FEA calculations, are imported from the model and include relevant data that is used in accordance with applicable standards. This ensures that simulations are conducted with accurate material behavior, improving the reliability of results.

• Managing Materials in SDC Verifier:
  • To remove materials, navigate to Model → Materials → Remove Multiple from the tree. A window will appear where you can select materials to remove. Press OK to remove all materials that are not used in the model.
• Multiple Editing:
  • For batch editing, click Model → Materials → Edit Multiple from the tree. The Multiple Material Properties Editor will appear, allowing you to set corresponding values to the selected materials or set all values to those materials.
  • Note: Leave some fields empty if you wish to retain the original material values.
• Visibility Control:
  • Material visibility on the scene can be adjusted using entity visibility control to make the simulation more intuitive.
• Colored Plot:
  • To visually differentiate materials, execute Model → Materials → Colored Plot from the tree. This allows you to plot selected materials in different colors and apply labels using the Labels Plotter Control.

The Stress-Strain Curve and Isotropic Materials

The relationship between stress and strain for isotropic materials is commonly represented in a stress-strain curve. This curve typically consists of:

Elastic Region: The material deforms elastically and returns to its original shape once the load is removed. The slope of this region defines Young’s Modulus. This behavior is described by Hooke’s Law, which states that the force required to extend or compress a material is proportional to its deformation.

In simulations, linear static analysis assumes the material behaves only within this elastic range. It does not account for any nonlinear effects or plastic deformation beyond the yield limit. To analyze behavior beyond this point—such as permanent deformation or material failure—a nonlinear material model must be used.

• Plastic Region: Once the material is stressed beyond its yield point—defined by the yield strength, a critical material property—it enters the plastic region. In this range, deformation becomes permanent, meaning the material will not return to its original shape even after the load is removed.
• Ultimate Strength and Failure: The material experiences necking and eventually breaks under continued loading.

(source)

Common Applications of Isotropic Materials in FEA

Isotropic materials are widely used in various engineering and industrial applications due to their uniform properties. Some common applications include:

• Structural Engineering: Steel, glass, and aluminum are used in building and bridge design to ensure predictable load-bearing performance.
• Aerospace and Automotive: Metals like titanium and aluminum alloys help optimize weight and strength in aircraft and vehicle components.
• Manufacturing and Product Design: Unfilled plastics and glass are used in consumer products where uniform strength and thermal stability are required.

Conclusion

Isotropic materials provide a straightforward and reliable foundation for Finite Element Analysis, ensuring accurate simulation results and predictable structural performance. Their uniform properties simplify material modeling, making them indispensable in various engineering applications. By leveraging isotropic materials in FEA, engineers can confidently assess designs, optimize performance, and prevent failures in real-world applications.
