Plate Buckling ABS

9 Apr 2021 v2020
  • Femap
  • Ansys

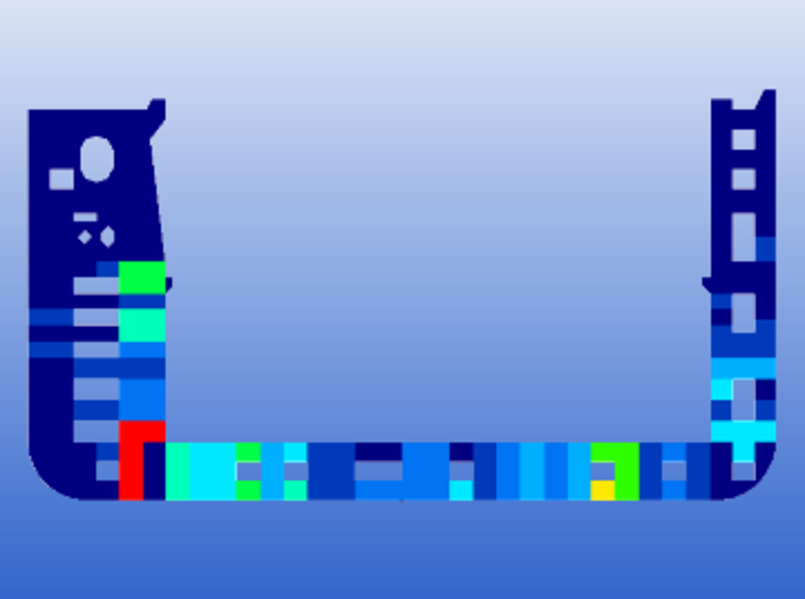

Plate Buckling check according to the ABS 2014 is performed on a part of the ship. The plates with dimensions are recognized automatically with the help of the Panel Finder tool.

Plate Buckling ABS Tutorial

What we will reveal in this tutorial:

  • A part of a plate model of the ship has been used as a start FEM model.
  • Load Sets and Load Group (Envelope) are created.
  • We will use Panel Finder Tool for plates recognition.
  • Plate Buckling tables and plots.
  • Reporting: as a result we will prepare and generate the final report on a check.

Download Plate Buckling ABS Tutorial for SDC Verifier 2020

Download Plate Buckling ABS Tutorial for SDC Verifier 5.3
