In this tutorial, we covered how Recognition Tools work in SDC Verifier and also how to set up and check structure according to AISC 360-22 Member Check ad Eurocode 3 Fatigue.
SDC Verifier is a powerful all-in-one software solution for structural design, FEA analysis, and verification according to standards.
This step-by-step tutorial is designed to get you started with the main SDC Verifier features.
You will learn how to:
- Recognize Beam Members;
- Analyze the model with Nastran solver
- Add two Standards: AISC 360-22 Members (2022) and Eurocode3 Fatigue (EN 1993-1-9, 2005);

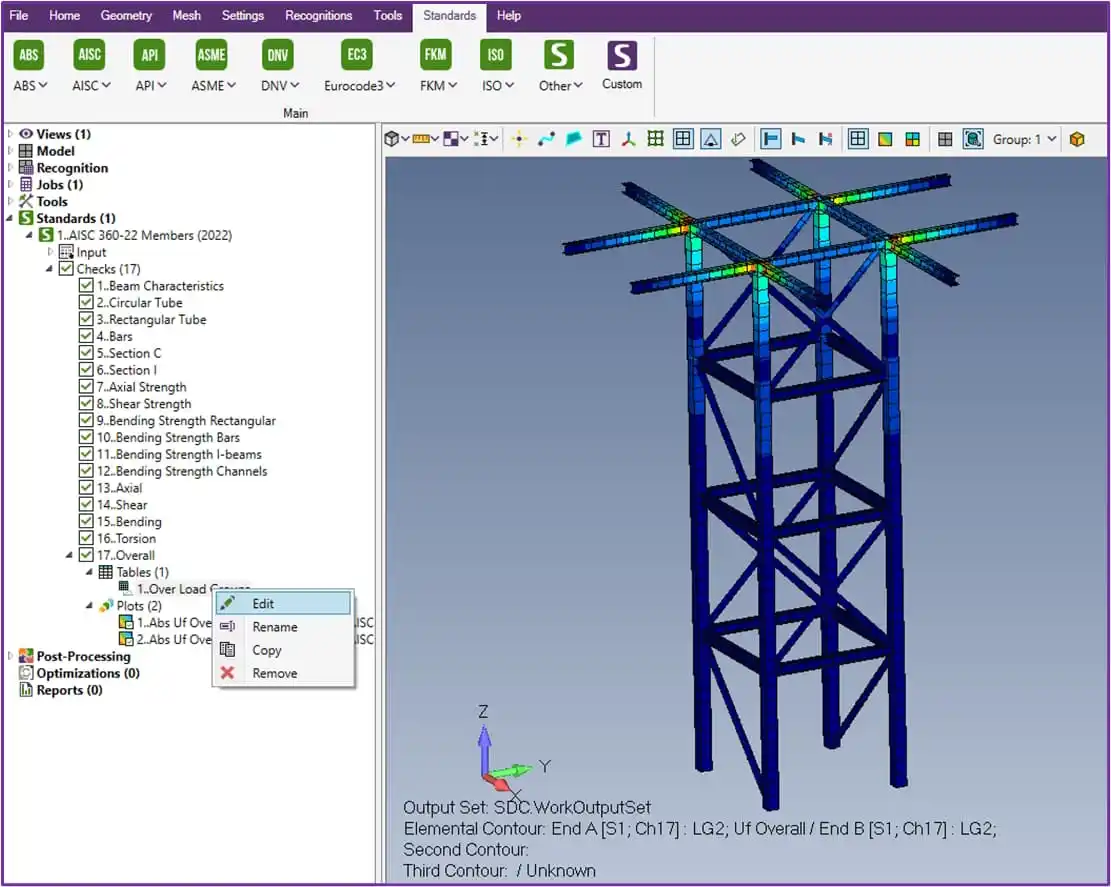

- Run Beam Member Check;
- Recognize and preview Welds;
- Run Fatigue Check;
- Create Criteria Plot for fatigue Check
Download Structural Checks according to Standards Tutorial
|SDC Verifier Version
|Structural Checks according to Standards_SDC Verifier 2023 R2
In order to complete this tutorial, you must have a version of SDC Verifier not lower than the version indicated in the table, as well as an activated license (Trial or other commercial or educational license)
Watch the recording of the online webinar Structural Checks according to Standards with SDC Verifier, which is the basis for this tutorial
