DNV RP-C203 (2024)

Fatigue verification of offshore and marine steel structures based on the October 2024 revision.

Designed for hot spot stress evaluation using Method B and directional SN curves.

About Standard

DNV RP-C203 (2024) defines fatigue assessment procedures for welded and non-welded offshore steel structures. SDC Verifier implements the standard per the 2024 edition, using Method B (Chapter 4.8) for stress extraction and applying environment-specific rules from Chapters 2.4.4 (air) and 2.4.5 (seawater with cathodic protection).

Key Fatigue Parameters:

  • Environment Type: Air by default; seawater CP configurable

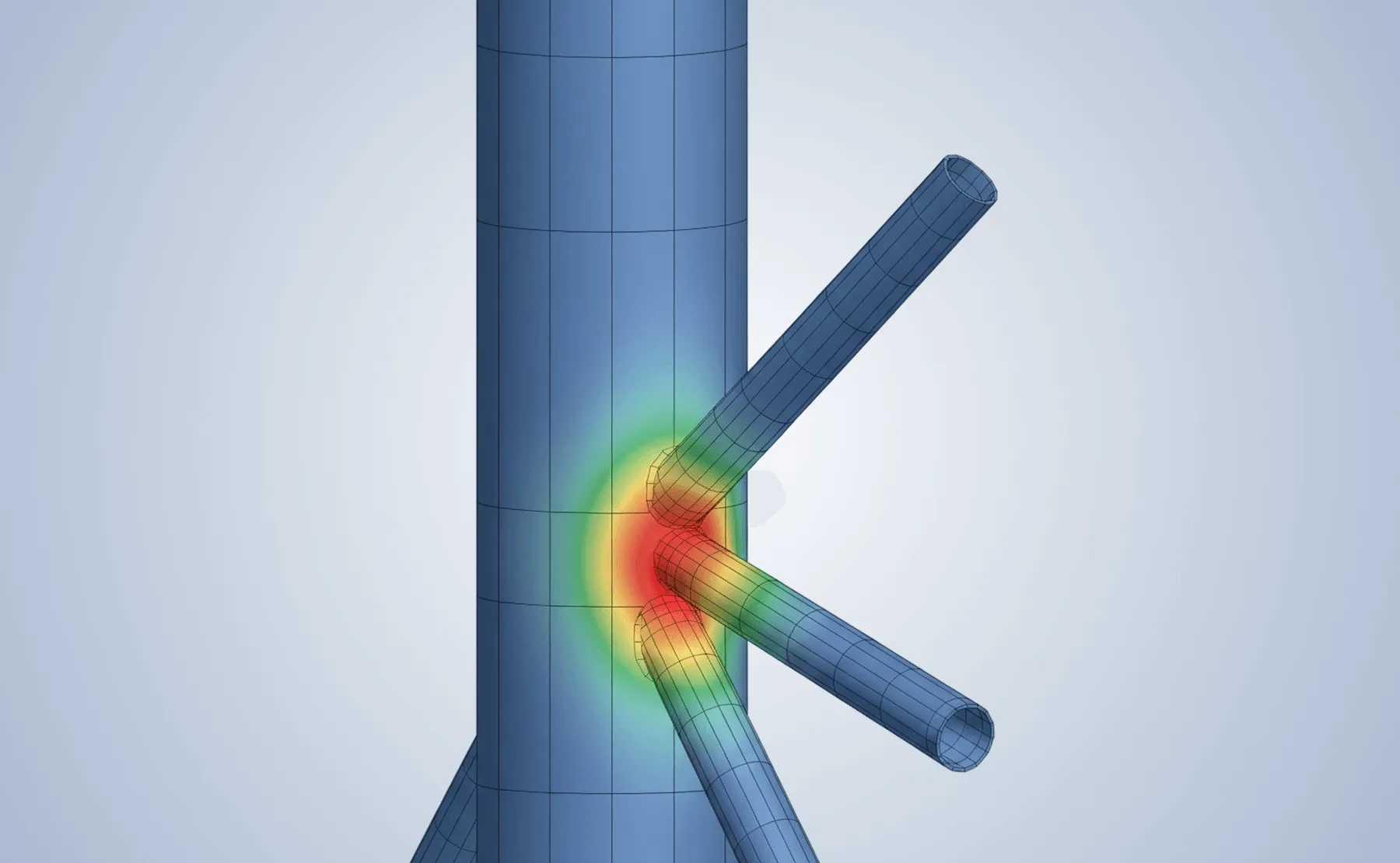

  • Hot Spot Stress: Offset at 0.5t from weld toe or shell intersection
  • SN Curve Assignment:
    • Global SN curve for non-welded components
    • Directional SN curves (X = parallel, Y = perpendicular) for welds
    • Weld intersections: automatically assign lowest fatigue class
    • Angular stress interpolation via Table F-1 (Appendix F.5)

Thickness Factor: Reference thickness = 25 mm (non-tubular), 16 mm (tubular). Thickness exponent K as per Tables 2-1 to 2-4. Can be edited per weld group or element type.

Stress Factor: By default, a 1.12 hot spot amplification factor is applied (can be disabled).

Other Features:

  • C2* curve override for user-defined fatigue curves
  • Method B valid for both shell and solid models
  • Uses fatigue life estimation with SN curves (stress-life method)
  • Supports carbon-manganese steel with yield strength < 960 MPa

This standard is essential for verifying welded joints and critical details in offshore topsides, jackets, marine terminals, wind turbine foundations, and similar cyclically loaded structures.

Key Benefits of SDC Verifier

  SDC Verifier

Effortless Design and Import

Work directly within Ansys, Femap, or Simcenter 3D without switching platforms.

Automatic Component Detection

Instantly identify beams, plates, welds, and joints in your FEA model.

Comprehensive Standards Library

Perform code checks with built-in support for ABS, AISC, Eurocode, API, and more.

Structural Optimization

Detect overstressed areas and refine your design with data-driven decisions.

Automatic Report Generation

Generate customizable, fully traceable reports with all calculations and references.
