Eurocode 9 Welds (EN 1999-1-1:2007+A1:2009)

The Eurocode 9 Welds (EN 1999-1-1:2007+A1:2009) implementation in SDC Verifier allows verification of welded joints in aluminum structures. The standard addresses the specific material behavior of aluminum, ensuring weld strength is correctly evaluated under applied loads.

Scope of Application:

• Aluminum welded members and connections

• Butt, fillet, and longitudinal weld checks

• Verification under axial, shear, and combined loading

Key Features:

• Automatic application of Eurocode 9 weld formulas without manual input

• Integration with SDC Verifier’s weld recognition tools

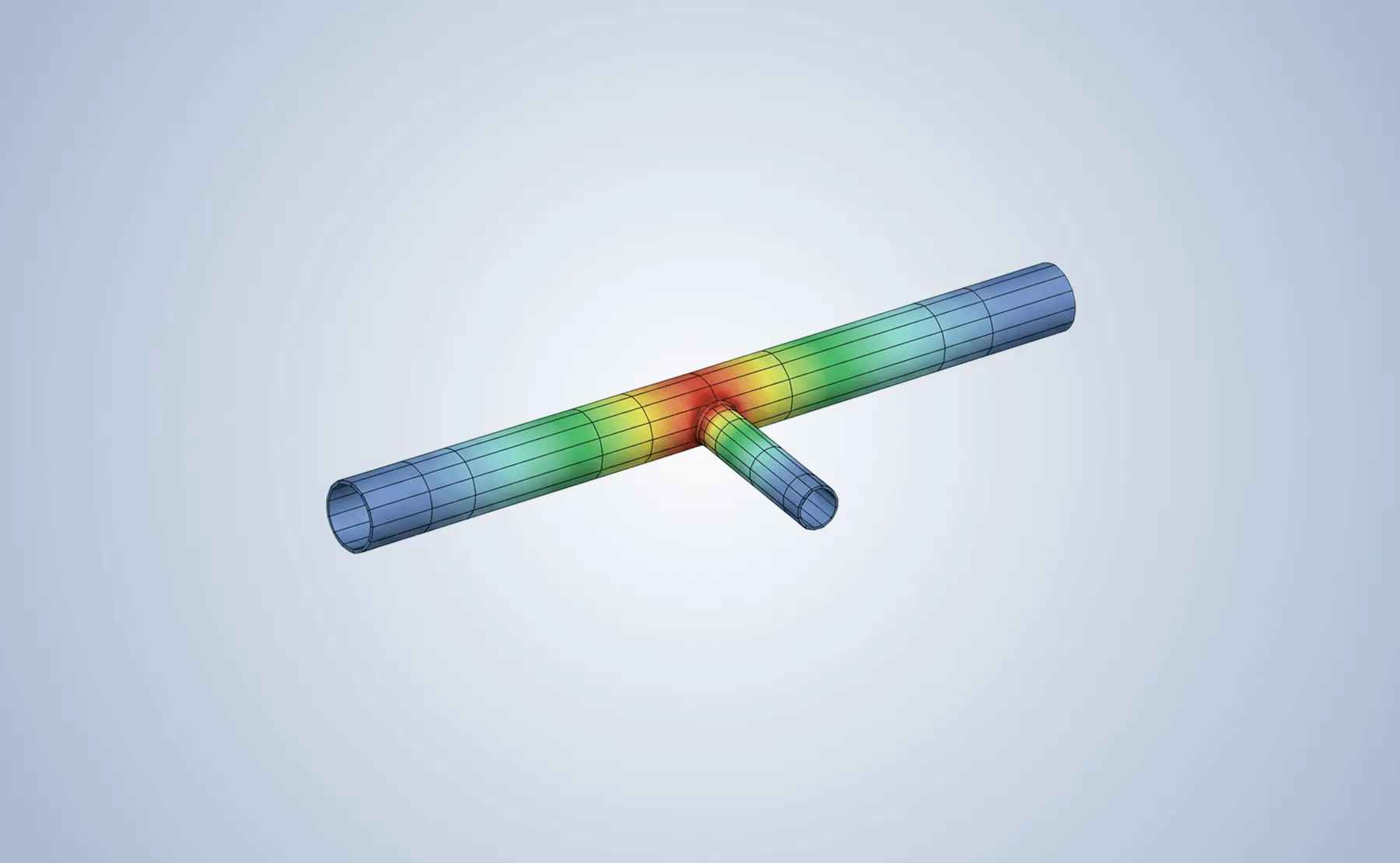

• Generation of weld utilization factors and stress ratio plots

• Combined evaluation with Eurocode 9 member checks

Highlights for Engineers:

• Eliminates manual Eurocode 9 weld checks for aluminum designs

• Fully automated workflow for large welded models
• Supports transparent documentation of weld verification in reports
