Report Designer

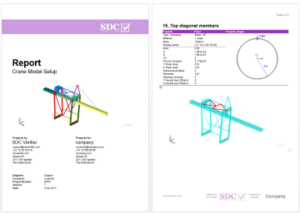

Report Designer is an advanced tool to create fully customizable reports with control over the structure and possibility to modify and regenerate a part of the report.

Report designer gives a possibility to completely control the structure of your report and easily preview and modify it.

This tutorial demonstrates how to build reports using the Report Designer:

• Open predefined project;
• Model Setup Report (First Page, Preface, Materials, Properties, Fem Loads and Constraints);
• Result Report (Content items, Predefined Tables, Add Plots and Tables);
• Number Format, Legend Settings;
• Tables and Plots for Static Stress Check.

Download Report Designer Tutorial for SDC Verifier

SDC Version	Tutorial for
	Ansys	Femap	Simcenter 3D	SDC Verifier
2023	Report Designer in Ansys and SDC Verifier 2023	Report Designer in Femap and SDC Verifier 2023	Report Designer in Simcenter 3D and SDC Verifier 2023	Report Designer SDC Verifier 2023 R2
2020	Report Designer in Ansys and SDC Verifier 2020	Report Designer in Femap and SDC Verifier 2020	Report Designer in Simcenter 3D and SDC Verifier 2020
5.3	Report Designer in Ansys and SDC Verifier 5.3	Report Designer in Femap and SDC Verifier 5.3	Report Designer in Simcenter 3D and SDC Verifier 5.3

In order to complete this tutorial, you must have a version of SDC Verifier not lower than the version indicated in the table, as well as an activated license (Trial or other commercial or educational license)

Watch the recording of the online webinar Engineering results presentation and Reporting with SDC Verifier
